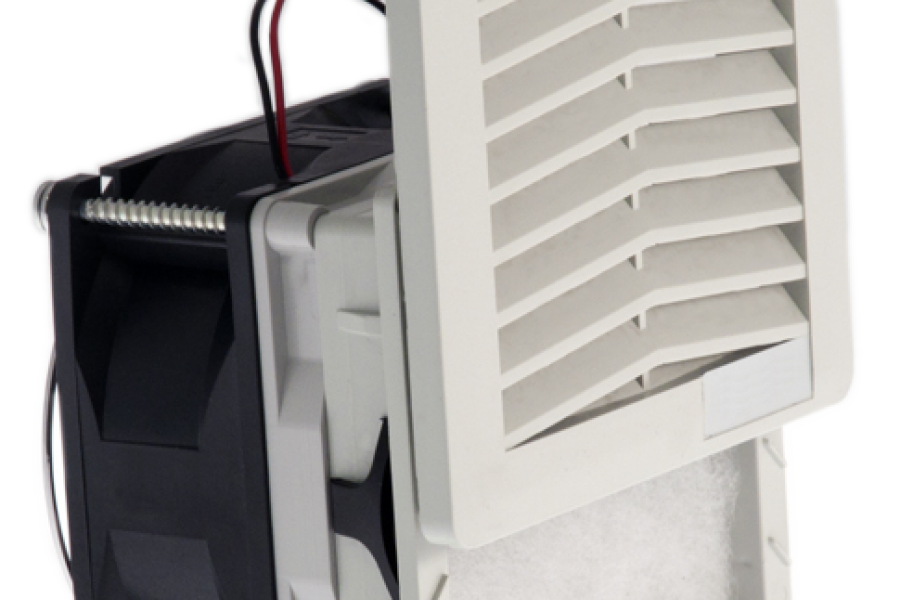

Features
- tool free installation
- one filter mat only
- standard enclosure cutouts (5 sizes)
- prevent the formation of hot pockets inside enclosures
Quick Links
Order Number 4023D2100 Colour RAL 7035 Housing Material ABS Plastic Ingress Protection IP 54 Optional Different housing colours available on request
With NEMA 3R protection part no. 4023D2130Approvals CE, cULus, CSA Operating Temperature Range -10°C - 55°C Air flow unimpeded 60 m³/h Static pressure 200 Pa Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
106.5 x 106.5 x 77.1 mm Weight 0.35 kg Cut out dimensions 92.5 +0.5 x 92.5 +0.5 mm Voltage / Frequency 24 V DC Rated current 0.71 A Power consumption 17 W Degree of separation 85% - DIN 24185 Wall thickness 1.5 - 2.2 mm Filter class G3 gemäß EN 779 Installation Elastic clips or by 4 self-threading screws Noise level 59 dB(A) Datasheet Generate PDF CAD files 3D - PDFSTEP Certification EC declaration Certification (UK) UKCA declaration With NEMA 3R protection part no. 4023D2130 Taric code 84145915 GTIN (EAN) 5350604100213
