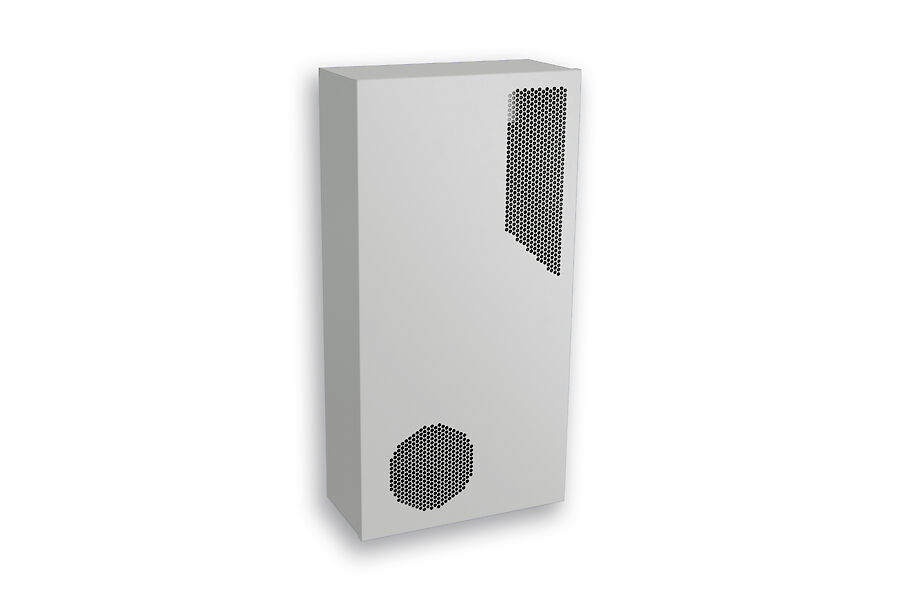

Features
- suitable for Indoor and Outdoor applications
- inbuilt electronic controller with colour display
- protection class IP 56
Quick Links
Heat exchanger performance 100 W/K Air flow volume (system / unimpeded) Ambient air circuit: 525 / 1000 m³/h
Cabinet air circuit: 500 / 1000 m³/hOperating Temperature Range -25°C - 65°C Mounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
914.4 x 460 x 218 mm Weight 25.5 kg Voltage / Frequency 230 V ~ 50/60 Hz Starting current 6 A Max. current 2 A Max. power 287 / 460 W Fuse 4 A (T) Connection 4 pole terminal block for electrical connection
5 pole terminal block for signalsDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Stainless steel housing part no. 58100002 Box dimension 965 x 543 x 263 mm Gross weight 30 kg Taric code 84158300 GTIN (EAN) 5350604200142
Heat exchanger performance 100 W/K Air flow volume (system / unimpeded) Ambient air circuit: 525 / 1000 m³/h
Cabinet air circuit: 500 / 1000 m³/hOperating Temperature Range -25°C - 65°C Mounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
914.4 x 460 x 218 mm Weight 25.5 kg Voltage / Frequency 120 V ~ 60 Hz Rated current 2.5 A Starting current 12 A Max. current 4 A Power consumption 285 W Max. power 460 W Fuse 6.3 A (T) Connection 4 pole terminal block for electrical connection
5 pole terminal block for signalsDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Stainless steel housing part no. 58100102 Box dimension 965 x 543 x 263 mm Gross weight 30 kg Taric code 84158300 GTIN (EAN) 5350604200159
