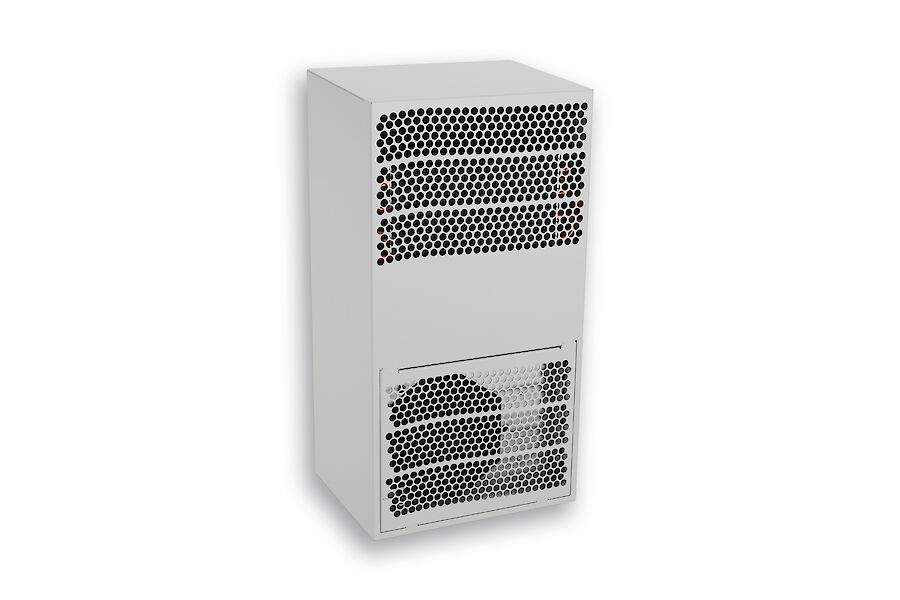

Features
- stainless steel models comply to NEMA / UL Type 4X
- adjustable electronic controller with display (rear)
- condensate evaporation as a standard
- virtually maintenance free
Cooling capacity L35L35 (EN14511-3) 290 W @ 50 Hz
300 W @ 60 HzCooling capacity L35L50 (EN14511-3) 250 W @ 50 Hz
250 W @ 60 HzEnclosure heater 150 W Compressor type Rotary piston compressor Refrigerant / GWP R 513A / 630 Refrigerant charge 110 g / 3.88 oz. High / low Pressure 2.9 / 0.6 MPa
425 / 88 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 85 / 300 m³/h
Cabinet air circuit: 85 / 136 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
480 x 250 x 190 mm Weight 15.2 kg Cut out dimensions 204 x 250 mm Voltage / Frequency 230 V ~ 50/60 Hz UL Voltage / Frequency 230 V ~ 60 Hz Current L35L35 1.4 A @ 50 Hz
1.3 A @ 60 HzStarting current 5 A Max. current 1.5 A Nominal power L35L35 300 W @ 50 Hz
295 W @ 60 HzMax. power 320 W @ 50 Hz
315 W @ 60 HzFuse 2.5 A (T) Short-circuit current rating 5 kA Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files 2D - PDF3D - PDFSTEP Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units Box dimensions 530 x 298 x 230 mm Gross weight 16.5 kg Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 290 W @ 50 Hz
300 W @ 60 HzCooling capacity L35L50 (EN14511-3) 250 W @ 50 Hz
250 W @ 60 HzEnclosure heater 150 W Compressor type Rotary piston compressor Refrigerant / GWP R 513A / 630 Refrigerant charge 110 g / 3.88 oz. High / low Pressure 2.9 / 0.6 MPa
425 / 88 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 85 / 300 m³/h
Cabinet air circuit: 85 / 136 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
480 x 250 x 190 mm Weight 15.2 kg Cut out dimensions 204 x 250 mm Voltage / Frequency 230 V ~ 50/60 Hz UL Voltage / Frequency 230 V ~ 60 Hz Current L35L35 1.4 A @ 50 Hz
1.3 A @ 60 HzStarting current 5 A Max. current 1.5 A Nominal power L35L35 300 W @ 50 Hz
295 W @ 60 HzMax. power 320 W @ 50 Hz
315 W @ 60 HzFuse 2.5 A (T) Short-circuit current rating 5 kA Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files 2D - PDF3D - PDFSTEP Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units In stainless steel 316 (V4A) part no. 57040184 Box dimensions 530 x 298 x 230 mm Gross weight 16.5 kg Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 300 W Cooling capacity L35L50 (EN14511-3) 250 W Enclosure heater 150 W Compressor type Rotary piston compressor Refrigerant / GWP R 513A / 630 Refrigerant charge 104 g / 3.67 oz. High / low Pressure 2.9 / 0.6 MPa
425 / 88 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 85 / 300 m³/h
Cabinet air circuit: 85 / 136 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
480 x 250 x 190 mm Weight 15.4 kg Cut out dimensions 204 x 250 mm Voltage / Frequency 120 V ~ 60 Hz UL Voltage / Frequency 115 V ~ 60 Hz Current L35L35 2.7 A Starting current 8 A Max. current 2.9 A Nominal power L35L35 310 W Max. power 338 W Fuse 5 A (T) Short-circuit current rating 5 kA Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files 2D - PDF3D - PDFSTEP Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units Box dimensions 530 x 298 x 230 mm Gross weight 16.5 kg Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 300 W Cooling capacity L35L50 (EN14511-3) 250 W Enclosure heater 150 W Compressor type Rotary piston compressor Refrigerant / GWP R 513A / 630 Refrigerant charge 104 g / 3.67 oz. High / low Pressure 2.9 / 0.6 MPa
425 / 88 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 85 / 300 m³/h
Cabinet air circuit: 85 / 136 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
480 x 250 x 190 mm Weight 15.4 kg Cut out dimensions 204 x 250 mm Voltage / Frequency 120 V ~ 60 Hz UL Voltage / Frequency 115 V ~ 60 Hz Current L35L35 2.7 A Starting current 8 A Max. current 2.9 A Nominal power L35L35 310 W Max. power 338 W Fuse 5 A (T) Short-circuit current rating 5 kA Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files 2D - PDF3D - PDFSTEP Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units In stainless steel AISI 316 (V4A) 57041184 Box dimensions 530 x 298 x 230 mm Gross weight 17.5 kg Taric code 84158200
