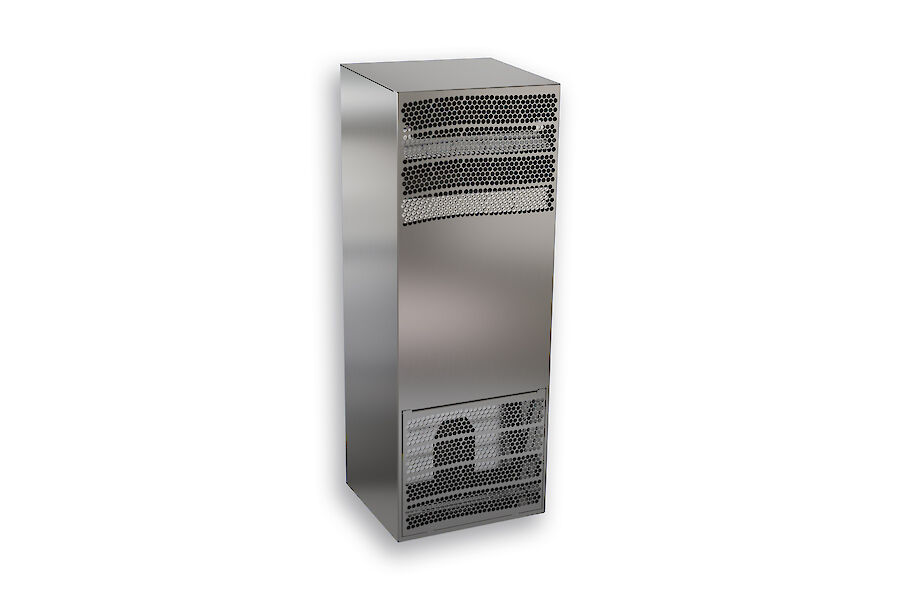

Features
- stainless steel models comply to NEMA / UL Type 4X
- adjustable electronic controller with display (rear)
- condensate evaporation as a standard
- virtually maintenance free
Cooling capacity L35L35 (EN14511-3) 550 W @ 50 Hz
570 W @ 60 HzCooling capacity L35L50 (EN14511-3) 445W @ 50 Hz
490 W @ 60 HzEnclosure heater 400 W Compressor type Rotary piston compressor Refrigerant / GWP R513A / 630 Refrigerant charge 226 g / 7.97 oz. High / low Pressure 29 / 6 bar
425 / 88 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 315 / 850 m³/h
Cabinet air circuit: 165 / 250 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
830 x 304 x 270 mm Weight 30 kg Cut out dimensions 265 x 180 mm
265 x 160 mmVoltage / Frequency 230 V ~ 50/60 Hz UL Voltage / Frequency 230 V ~ 60 Hz Current L35L35 2.1 A @ 50 Hz
1.9 A @ 60 HzStarting current 10 A Max. current 3.4 A Nominal power L35L35 422 W @ 50 Hz
432 W @ 60 HzMax. power 497 W @ 50Hz
545 W @ 60HzFuse 4 A (T) Short-circuit current rating 5 kA Connection 4-pole terminal block for power
5-pole terminal block for signals
3-pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF3D - PDF Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units No Order Information
Cooling capacity L35L35 (EN14511-3) 550 W @ 50 Hz
570 W @ 60 HzCooling capacity L35L50 (EN14511-3) 445W @ 50 Hz
490 W @ 60 HzEnclosure heater 400 W Compressor type Rotary piston compressor Refrigerant / GWP R513A / 630 Refrigerant charge 226 g / 7.97 oz. High / low Pressure 29 / 6 bar
425 / 88 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 315 / 850 m³/h
Cabinet air circuit: 165 / 250 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
830 x 304 x 270 mm Weight 30 kg Cut out dimensions 265 x 180 mm
265 x 160 mmVoltage / Frequency 230 V ~ 50/60 Hz UL Voltage / Frequency 230 V ~ 60 Hz Current L35L35 2.1 A @ 50 Hz
1.9 A @ 60 HzStarting current 10 A Max. current 3.4 A Nominal power L35L35 422 W @ 50 Hz
432 W @ 60 HzMax. power 497 W @ 50Hz
545 W @ 60HzFuse 4 A (T) Short-circuit current rating 5 kA Connection 4-pole terminal block for power
5-pole terminal block for signals
3-pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF3D - PDF Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units With stainless steel 316 (V4A) part no. 57050184 Box dimensions 870 x 348 x 310 mm Gross weight 32 kg Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 550 W @ 50 Hz
570 W @ 60 HzCooling capacity L35L50 (EN14511-3) 445W @ 50 Hz
490 W @ 60 HzEnclosure heater 400 W Compressor type Rotary piston compressor Refrigerant / GWP R513A / 630 Refrigerant charge 226 g / 7.97 oz. High / low Pressure 29 / 6 bar
425 / 88 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 315 / 850 m³/h
Cabinet air circuit: 165 / 250 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
830 x 304 x 270 mm Weight 32 kg Cut out dimensions 265 x 180 mm
265 x 160 mmVoltage / Frequency 120 V ~ 50/60 Hz UL Voltage / Frequency 115 V ~ 60 Hz Current L35L35 4.2 A @ 50 Hz
3.8 A @ 60 HzStarting current 20 A Max. current 6.8 A Nominal power L35L35 422 W @ 50 Hz
432 W @ 60 HzMax. power 497 W @ 50 Hz
545 W @ 60 HzFuse 8 A (T) Short-circuit current rating 5 kA Connection 4-pole terminal block for power
5-pole terminal block for signals
3-pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF3D - PDF Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units Box dimensions 870 x 348 x 310 mm Gross weight 34 kg Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 550 W @ 50 Hz
570 W @ 60 HzCooling capacity L35L50 (EN14511-3) 445W @ 50 Hz
490 W @ 60 HzEnclosure heater 400 W Compressor type Rotary piston compressor Refrigerant / GWP R513A / 630 Refrigerant charge 226 g / 7.97 oz. High / low Pressure 29 / 6 bar
425 / 88 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 315 / 850 m³/h
Cabinet air circuit: 165 / 250 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
830 x 304 x 270 mm Weight 32 kg Cut out dimensions 265 x 180 mm
265 x 160 mmVoltage / Frequency 120 V ~ 50/60 Hz UL Voltage / Frequency 115 V ~ 60 Hz Current L35L35 4.2 A @ 50 Hz
3.8 A @ 60 HzStarting current 20 A Max. current 6.8 A Nominal power L35L35 422 W @ 50 Hz
432 W @ 60 HzMax. power 497 W @ 50 Hz
545 W @ 60 HzFuse 8 A (T) Short-circuit current rating 5 kA Connection 4-pole terminal block for power
5-pole terminal block for signals
3-pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF3D - PDF Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units In stainless steel AISI 316 (V4A) part no. 57051184 Box dimensions 870 x 348 x 310 mm Gross weight 34 kg Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 550 W @ 50 Hz
570 W @ 60 HzCooling capacity L35L50 (EN14511-3) 445W @ 50 Hz
490 W @ 60 HzEnclosure heater 400 W Compressor type Rotary piston compressor Refrigerant / GWP R513A / 630 Refrigerant charge 226 g / 7.97 oz. High / low Pressure 29 / 6 bar
425 / 88 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 315 / 850 m³/h
Cabinet air circuit: 165 / 250 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
830 x 304 x 270 mm Weight 32 kg Cut out dimensions 265 x 180 mm
265 x 160 mmVoltage / Frequency 400/460 V - 50/60 Hz 2~ UL Voltage / Frequency 400/460 V ~ 60 Hz 2~ Current L35L35 1.2 A @ 50 Hz
1.1 A @ 60 HzStarting current 5 A Max. current 1.9 A Nominal power L35L35 422 W @ 50 Hz
432 W @ 60 HzMax. power 497 W @ 50 Hz
545 W @ 60 HzFuse 2 x 3 A (T) Short-circuit current rating 5 kA Connection 4-pole terminal block for power
5-pole terminal block for signals
3-pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF3D - PDF Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units Box dimensions 870 x 348 x 310 mm Gross weight 34 kg Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 550 W @ 50 Hz
570 W @ 60 HzCooling capacity L35L50 (EN14511-3) 445W @ 50 Hz
490 W @ 60 HzEnclosure heater 400 W Compressor type Rotary piston compressor Refrigerant / GWP R513A / 630 Refrigerant charge 226 g / 7.97 oz. High / low Pressure 29 / 6 bar
425 / 88 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 315 / 850 m³/h
Cabinet air circuit: 165 / 250 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
830 x 304 x 270 mm Weight 32 kg Cut out dimensions 265 x 180 mm
265 x 160 mmVoltage / Frequency 400/460 V - 50/60 Hz 2~ UL Voltage / Frequency 400/460 V ~ 60 Hz 2~ Current L35L35 1.2 A @ 50 Hz
1.1 A @ 60 HzStarting current 5 A Max. current 1.9 A Nominal power L35L35 422 W @ 50 Hz
432 W @ 60 HzMax. power 497 W @ 50 Hz
545 W @ 60 HzFuse 2 x 3 A (T) Short-circuit current rating 5 kA Connection 4-pole terminal block for power
5-pole terminal block for signals
3-pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF3D - PDF Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units In stainless steel 316 (V4A) part no. 57052184 Box dimensions 870 x 348 x 310 mm Gross weight 34 kg Taric code 84158200
