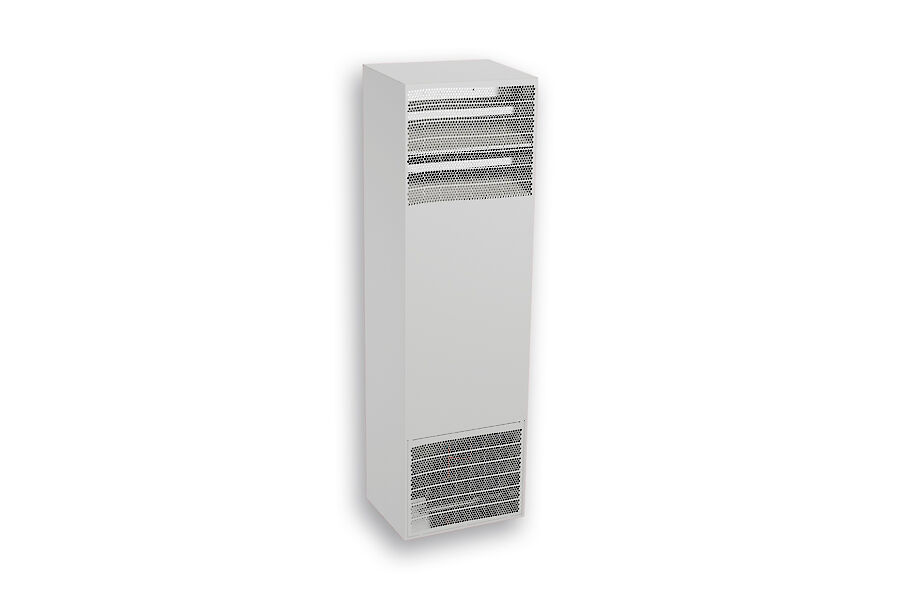

Features
- stainless steel models comply to NEMA / UL Type 4X
- adjustable electronic controller with display (rear)
- condensate evaporation as a standard
- virtually maintenance free
Cooling capacity L35L35 (EN14511-3) 3000 W @ 50 Hz
3000 W @ 60 HzCooling capacity L35L50 (EN14511-3) 2380 W @ 50 Hz
2510 W @ 60 HzEnclosure heater 1500 W Compressor type Rotary piston compressor Refrigerant / GWP R513A / 630 Refrigerant charge 1075 g / 37.9 oz. High / low Pressure 2.9 / 0.6 MPa
425 / 88 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 765 / 1200 m³/h
Cabinet air circuit: 950 / 1200 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1,550 x 457 x 355 mm Weight 75.3 kg Voltage / Frequency 230 V ~ 50/60 Hz Current L35L35 6.2 A @ 50 Hz
8.1 A @ 60 HzStarting current 30 A Max. current 9.9 A Nominal power L35L35 1410 W @ 50 Hz
1820 W @ 60 HzMax. power 1710 W @ 50 Hz
2180 W @ 60 HzFuse 16 A (T) Short-circuit current rating 5 kA Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF3D - PDF Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units Box dimensions 1,590 x 503 x 395 mm Gross weight 79.5 kg Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 3000 W @ 50 Hz
3000 W @ 60 HzCooling capacity L35L50 (EN14511-3) 2380 W @ 50 Hz
2510 W @ 60 HzEnclosure heater 1500 W Compressor type Rotary piston compressor Refrigerant / GWP R513A / 630 Refrigerant charge 1075 g / 37.9 oz. High / low Pressure 2.9 / 0.6 MPa
425 / 88 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 765 / 1200 m³/h
Cabinet air circuit: 950 / 1200 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1,550 x 457 x 355 mm Weight 75.3 kg Voltage / Frequency 230 V ~ 50/60 Hz Current L35L35 6.2 A @ 50 Hz
8.1 A @ 60 HzStarting current 30 A Max. current 9.9 A Nominal power L35L35 1410 W @ 50 Hz
1820 W @ 60 HzMax. power 1710 W @ 50 Hz
2180 W @ 60 HzFuse 16 A (T) Short-circuit current rating 5 kA Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF3D - PDF Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units In stainless steel 316 (V4A) part no. 57310184 Box dimensions 1,590 x 503 x 395 mm Gross weight 79.5 kg Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 3000 W @ 50 Hz
3000 W @ 60 HzCooling capacity L35L50 (EN14511-3) 2380 W @ 50 Hz
2510 W @ 60 HzEnclosure heater 1500 W Compressor type Rotary piston compressor Refrigerant / GWP R513A / 630 Refrigerant charge 1075 g / 37.9 oz. High / low Pressure 2.9 / 0.6 MPa
425 / 88 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 765 / 1200 m³/h
Cabinet air circuit: 950 / 1200 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1,550 x 457 x 355 mm Weight 78 kg Voltage / Frequency 120 V ~ 50/60 Hz UL Voltage / Frequency 115 V ~ 60 Hz Current L35L35 12.4 A @ 50 Hz
16.2 A @ 60 HzStarting current 49 A Max. current 19.8 A Nominal power L35L35 1410 W @ 50 Hz
1820 W @ 60 HzMax. power 1710 W @ 50 Hz
2180 W @ 60 HzFuse 20 A (T) Short-circuit current rating 5 kA Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF3D - PDF Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units Box dimensions 1,590 x 503 x 395 mm Gross weight 82 kg Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 3000 W @ 50 Hz
3000 W @ 60 HzCooling capacity L35L50 (EN14511-3) 2380 W @ 50 Hz
2510 W @ 60 HzEnclosure heater 1500 W Compressor type Rotary piston compressor Refrigerant / GWP R513A / 630 Refrigerant charge 1075 g / 37.9 oz. High / low Pressure 2.9 / 0.6 MPa
425 / 88 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 765 / 1200 m³/h
Cabinet air circuit: 950 / 1200 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1,550 x 457 x 355 mm Weight 78 kg Voltage / Frequency 120 V ~ 50/60 Hz UL Voltage / Frequency 115 V ~ 60 Hz Current L35L35 12.4 A @ 50 Hz
16.2 A @ 60 HzStarting current 49 A Max. current 19.8 A Nominal power L35L35 1410 W @ 50 Hz
1820 W @ 60 HzMax. power 1710 W @ 50 Hz
2180 W @ 60 HzFuse 20 A (T) Short-circuit current rating 5 kA Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF3D - PDF Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units In stainless steel 316 (V4A) part no. 57311184 Box dimensions 1,590 x 503 x 395 mm Gross weight 82 kg Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 3000 W @ 50 Hz
3000 W @ 60 HzCooling capacity L35L50 (EN14511-3) 2380 W @ 50 Hz
2510 W @ 60 HzEnclosure heater 1500 W Compressor type Rotary piston compressor Refrigerant / GWP R513A / 630 Refrigerant charge 1040 g / 36.7 oz. High / low Pressure 2.9 / 0.6 MPa
425 / 88 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 765 / 1200 m³/h
Cabinet air circuit: 950 / 1200 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1,550 x 457 x 355 mm Weight 78 kg Voltage / Frequency 380-415 V 50 Hz 3~
400-460 V 60 Hz 3~UL Voltage / Frequency 400/460 V ~ 60 Hz 3~ Current L35L35 3.0 A @ 50 Hz
3.1 A @ 60 HzStarting current 7.6 A / 8.1 A Max. current 3.4 A Nominal power L35L35 1400 W @ 50 Hz
1810 W @ 60 HzMax. power 1720 W @ 50 Hz
2150 W @ 60 HzFuse 3 x 6 A (T) Short-circuit current rating 5 kA Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF3D - PDF Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units Box dimensions 1,590 x 503 x 395 mm Gross weight 82 kg Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 3000 W @ 50 Hz
3000 W @ 60 HzCooling capacity L35L50 (EN14511-3) 2380 W @ 50 Hz
2510 W @ 60 HzEnclosure heater 1500 W Compressor type Rotary piston compressor Refrigerant / GWP R513A / 630 Refrigerant charge 1040 g / 36.7 oz. High / low Pressure 2.9 / 0.6 MPa
425 / 88 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 765 / 1200 m³/h
Cabinet air circuit: 950 / 1200 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1,550 x 457 x 355 mm Weight 78 kg Voltage / Frequency 380-415 V 50 Hz 3~
400-460 V 60 Hz 3~UL Voltage / Frequency 400/460 V ~ 60 Hz 3~ Current L35L35 3.0 A @ 50 Hz
3.1 A @ 60 HzStarting current 7.6 A / 8.1 A Max. current 3.4 A Nominal power L35L35 1400 W @ 50 Hz
1810 W @ 60 HzMax. power 1720 W @ 50 Hz
2150 W @ 60 HzFuse 3 x 6 A (T) Short-circuit current rating 5 kA Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF3D - PDF Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units In stainless steel 316 (V4A) part no. 57312184 Box dimensions 1,590 x 503 x 395 mm Gross weight 82 kg Taric code 84158200
