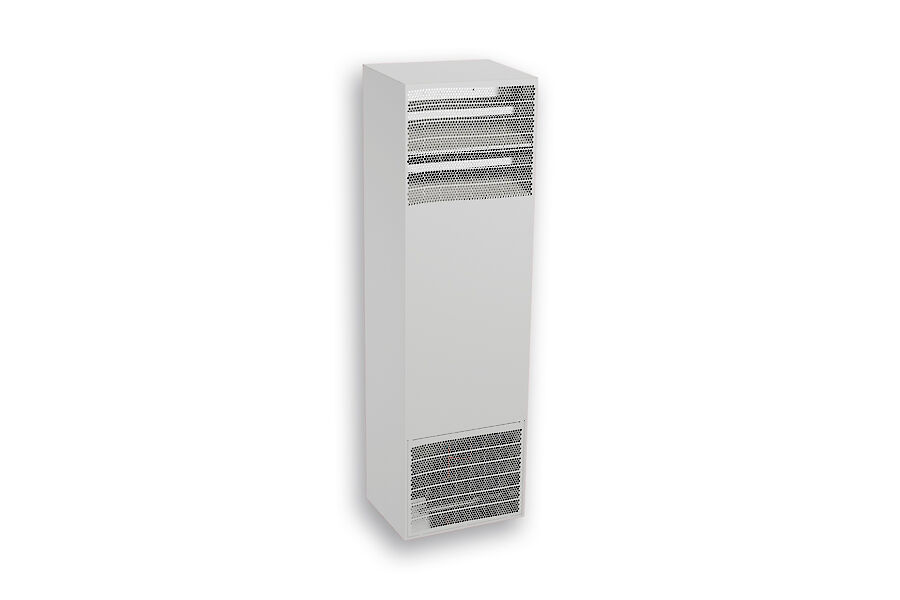

Features
- stainless steel models comply to NEMA / UL Type 4X
- adjustable electronic controller with display (rear)
- condensate evaporation as a standard
- virtually maintenance free
Cooling capacity L35L35 (EN14511-3) 4000 W @ 50 Hz
4000 W @ 60 HzCooling capacity L35L50 (EN14511-3) 3180 W @ 50 Hz
3360 W @ 60 HzEnclosure heater 2000 W Compressor type Rotary piston compressor Refrigerant / GWP R513A / 630 Refrigerant charge 1217 g / 42.9 oz. High / low Pressure 3.0 / 0.5 MPa
433 / 77 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 990 / 1500 m³/h
Cabinet air circuit: 950 / 1200 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1,550 x 457 x 355 mm Weight 82 kg Voltage / Frequency 230 V ~ 50/60 Hz UL Voltage / Frequency 230 V ~ 60 Hz Current L35L35 9.5 A @ 50 Hz
12.5 A @ 60 HzStarting current 50 A Max. current 15.2 A Nominal power L35L35 2160 W @ 50 Hz
2790 W @ 60 HzMax. power 2620 W @ 50 Hz
3480 kW @ 60 HzFuse 20 A (T) Short-circuit current rating 5 kA Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF3D - PDF Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units Box dimensions 1,590 x 503 x 395 mm Gross weight 86 kg Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 4000 W @ 50 Hz
4000 W @ 60 HzCooling capacity L35L50 (EN14511-3) 3180 W @ 50 Hz
3360 W @ 60 HzEnclosure heater 2000 W Compressor type Rotary piston compressor Refrigerant / GWP R513A / 630 Refrigerant charge 1217 g / 42.9 oz. High / low Pressure 3.0 / 0.5 MPa
433 / 77 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 990 / 1500 m³/h
Cabinet air circuit: 950 / 1200 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1,550 x 457 x 355 mm Weight 82 kg Voltage / Frequency 230 V ~ 50/60 Hz UL Voltage / Frequency 230 V ~ 60 Hz Current L35L35 9.5 A @ 50 Hz
12.5 A @ 60 HzStarting current 50 A Max. current 15.2 A Nominal power L35L35 2160 W @ 50 Hz
2790 W @ 60 HzMax. power 2620 W @ 50 Hz
3480 kW @ 60 HzFuse 20 A (T) Short-circuit current rating 5 kA Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF3D - PDF Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units In stainless steel 316 (V4A) part no. 57410184 Box dimensions 1,590 x 503 x 395 mm Gross weight 86 kg Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 4.1 kW @ 50 Hz
4.1 kW @ 60 HzCooling capacity L35L50 (EN14511-3) 3.25 kW @ 50 Hz
3.40 kW @ 60 HzEnclosure heater 2000 W Compressor type Rotary piston compressor Refrigerant / GWP R513A / 630 Refrigerant charge 1270 g / 44.8 oz. High / low Pressure 2.9 / 0.5 MPa
425 / 74 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 990 / 1500 m³/h
Cabinet air circuit: 950 / 1200 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1,550 x 457 x 355 mm Weight 83 kg Voltage / Frequency 380-415 V 50 Hz 3~
400-460 V 60 Hz 3~UL Voltage / Frequency 400/460 V ~ 60 Hz 3~ Current L35L35 3.8 A @ 50 Hz
4.0 A @ 60 HzStarting current 8.2 A / 8.5 A Max. current 4.7 A Nominal power L35L35 1650 W @ 50 Hz
1940 W @ 60 HzMax. power 1800 W @ 50 Hz
2190 W @ 60 HzFuse 3 x 8 A (T) Short-circuit current rating 5 kA Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF3D - PDF Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units Box dimensions 1,590 x 503 x 395 mm Gross weight 87 kg Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 4.1 kW @ 50 Hz
4.1 kW @ 60 HzCooling capacity L35L50 (EN14511-3) 3.25 kW @ 50 Hz
3.40 kW @ 60 HzEnclosure heater 2000 W Compressor type Rotary piston compressor Refrigerant / GWP R513A / 630 Refrigerant charge 1270 g / 44.8 oz. High / low Pressure 2.9 / 0.5 MPa
425 / 74 psigOperating Temperature Range -40°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 990 / 1500 m³/h
Cabinet air circuit: 950 / 1200 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1,550 x 457 x 355 mm Weight 83 kg Voltage / Frequency 380-415 V 50 Hz 3~
400-460 V 60 Hz 3~UL Voltage / Frequency 400/460 V ~ 60 Hz 3~ Current L35L35 3.8 A @ 50 Hz
4.0 A @ 60 HzStarting current 8.2 A / 8.5 A Max. current 4.7 A Nominal power L35L35 1650 W @ 50 Hz
1940 W @ 60 HzMax. power 1800 W @ 50 Hz
2190 W @ 60 HzFuse 3 x 8 A (T) Short-circuit current rating 5 kA Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF3D - PDF Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Service video - COMPACT OUTDOOR cooling units In stainless steel 316 (V4A) part no. 57412184 Box dimensions 1,590 x 503 x 395 mm Gross weight 87 kg Taric code 84158200
