Features
- modern industrial design
- maximum cooling power with minimum space
- digital controller with display
- microchannel condenser allows significant reduction in refrigerant charge resulting in a lower CO₂ equivalent
- temperature range 5˚C - 55˚C
- built-in electrical condensate evaporator
- RS 485 MODBUS interface included
Quick Links

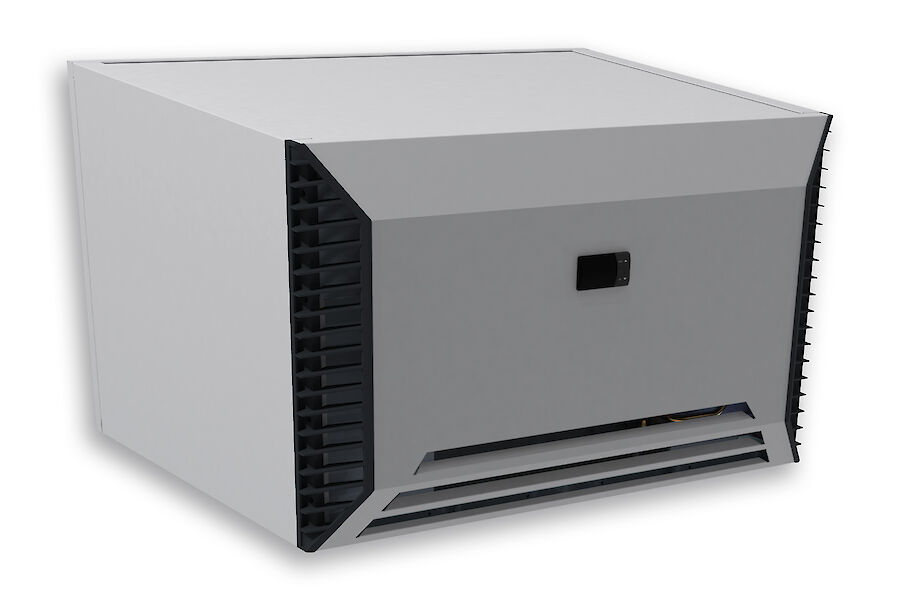

Order Number 953020001 Brand Name SLIMLINE PRO TOP Colour RAL 7035 Housing Material Mild steel, powder coated Ingress Protection IP 54 Approvals CE Cooling capacity L35L35 (EN14511-3) 3200 W Cooling capacity L35L50 (EN14511-3) 2640 W Compressor type Rotary piston Refrigerant / GWP R134a / 1430 High / low Pressure 28 / 6 bar
406 / 88 psiOperating Temperature Range 5°C - 55°C Air flow volume (system / unimpeded) Ambient air circuit: 1400 m³/h
Enclosure air circuit: 1233 m³/hMounting Roof mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
456 x 795 x 575 mm Weight 54.2 kg Voltage / Frequency 400/460 V - 50/60 Hz 3~ Current L35L35 2.9 / 2.8 A Starting current 20 A Max. current 3.2 A Nominal power L35L35 1.16 / 1.50 kW Max. power 1.97 kW Fuse 15 A (T) Short-circuit current rating 5 kA Connection 4 pole connector for power
5 pole connector for signals
3 pole connector for RS 485 MODBUSDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF Certification EC declaration Certification (UK) UKCA declaration Stainless steel housing part no. 95302002 Taric Code 84158200
