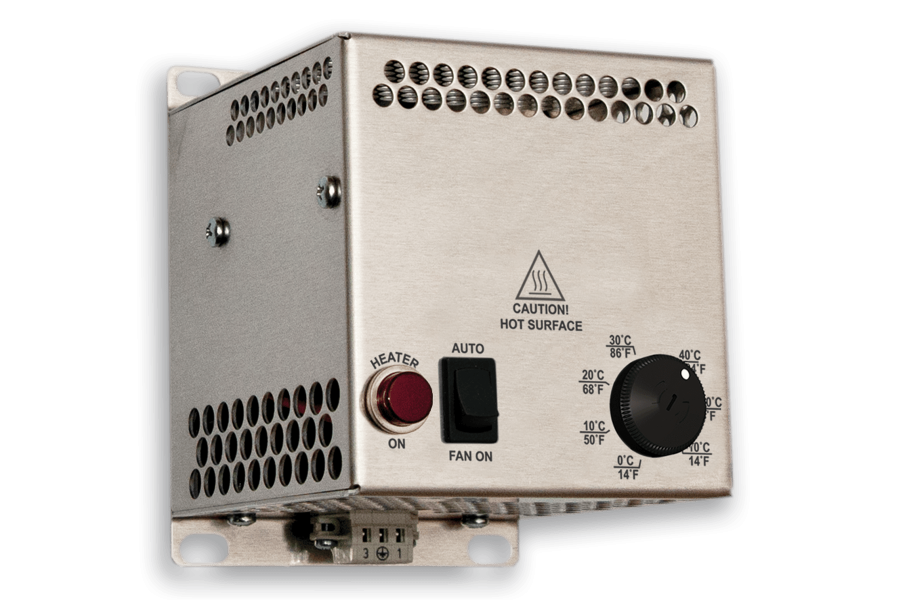

Features
- with adjustable thermostat
- status indicator light
- fan switch Auto / On
- screw or DIN rail mounting
Quick Links
Heating power at 10°C 125 W Operating Temperature Range -20°C - 40°C Mounting DIN rail Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
137 x 111 x 116 mm Weight 0.8 kg Voltage / Frequency 230 V ~ 50/60 Hz Rated current 0.6 A Fan air flow, approx. 27 m³/h Fuse 2 A (T) Connection Terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declaration Certification (UK) UKCA declaration Video KH 801 Cabinet fan heater Taric code 85162999 GTIN (EAN) 5350604020252
Heating power at 10°C 125 W Operating Temperature Range -20°C - 40°C Mounting DIN rail Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
137 x 111 x 116 mm Weight 0.8 kg Voltage / Frequency 115 V ~ 60 Hz Rated current 1.2 A Fan air flow, approx. 27 m³/h Fuse 2 A (T) Connection Terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declaration Certification (UK) UKCA declaration Video KH 801 Cabinet fan heater Taric code 85162999 GTIN (EAN) 5350604020283
Heating power at 10°C 125 W Operating Temperature Range -20°C - 40°C Mounting DIN rail Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
137 x 111 x 116 mm Weight 0.8 kg Voltage / Frequency 24 V DC Rated current 5.3 A Fan air flow, approx. 27 m³/h Fuse 6 A (T) Connection Terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declaration Certification (UK) UKCA declaration Video KH 801 Cabinet fan heater Taric code 85162999 GTIN (EAN) 5350604020313
