Features

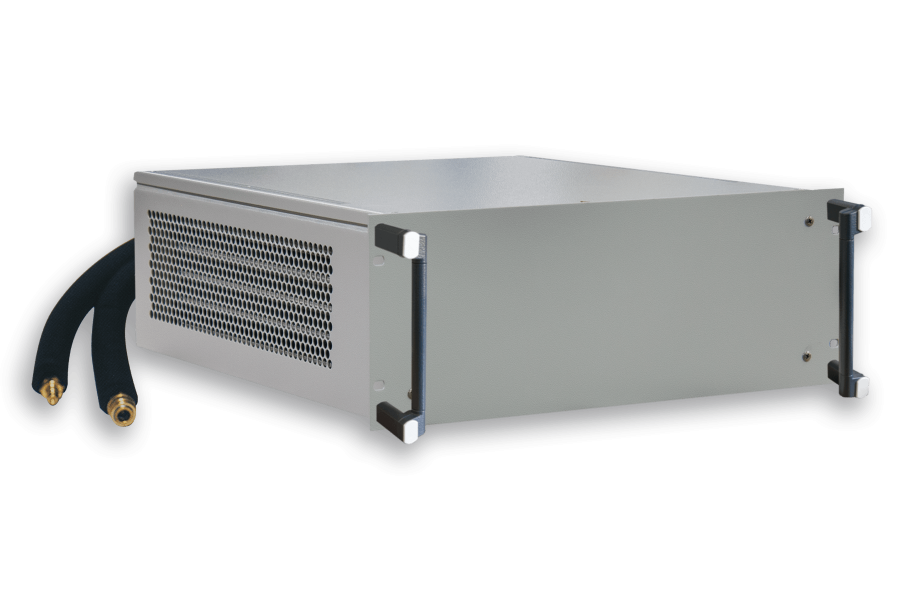

- air/water heat exchanger for 19" industrial enclosures and IT and telecom applications
- with proportional waterflow regulator (control range +20°C - +50°C)
- maintenance free
Quick Links
Order Number 2194000 Brand Name 19 " RACK Colour RAL 7035 Housing Material Mild steel, powder coated IP protection class to EN 60 529 IP 54 Note With proportional water flow regulator
(control range 20°C - 50°C)Approvals CE Cooling capacity L35W10 (200 l/h) 2 kW Cooling capacity L35W10 (500 l/h) 2.35 kW *) Refrigerant / GWP Water, light oils or similar Operating Temperature Range 1°C - 72°C Air flow volume (system / unimpeded) 360 / 390 m³/h @ 50 Hz
370 / 410 m³/h @ 60 HzMounting 19" rack Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
178 (4U) x 443 x 505 mm Weight 16.5 kg Voltage / Frequency 230 V ~ 50/60 Hz Starting current 2.5 A Max. current 0.45 A Max. power 100 W Pressure water circuit 10 bar Water connection Rp 1/4" - inside thread with 2 connectors
for pipe internal diameter of 10 mmFuse 4 A (T) Short-circuit current rating 5 kA Connection Plug Datasheet Generate PDF Instruction manual Generate PDF Certification EC declaration Certification (UK) EC declaration Taric code 84158200 GTIN (EAN) 5350604210547
Order Number 2194100 Brand Name 19 " RACK Colour RAL 7035 Housing Material Mild steel, powder coated IP protection class to EN 60 529 IP 54 Note With proportional water flow regulator
(control range +20°C - +50°C)
Wide voltage range from 90 - 265 VApprovals CE Cooling capacity L35W10 (200 l/h) 2 kW Cooling capacity L35W10 (500 l/h) 2.35 kW Refrigerant / GWP Water, light oils or similar Operating Temperature Range 1°C - 72°C Air flow volume (system / unimpeded) 370 / 410 m³/h Mounting 19" rack Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
175 x 443 x 505 mm Weight 16.5 kg Voltage / Frequency 90 - 265 V ~ 50/60 Hz Starting current 2.5 A Max. current 0.6 A Max. power 150 W Pressure water circuit 10 bar Water connection Rp 1/4" - inside thread with 2 connectors
for pipe internal diameter of 10 mmFuse 4 A (T) Short-circuit current rating 5 kA Connection Plug Datasheet Generate PDF Instruction manual Generate PDF Certification EC declaration Certification (UK) EC declaration Taric codeTariffa doganale Taric 84158200 GTIN (EAN) 5350604210592
