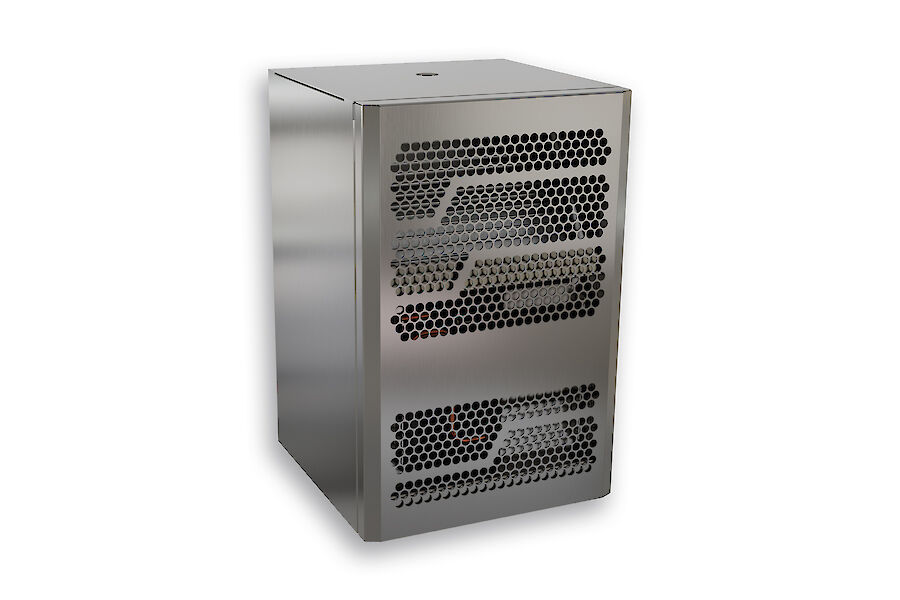

Features
- stainless steel housing AISI 316 (V4A)
- high protection rating of IP 56, NEMA / UL Type 3R/4X
- condensate evaporation IP 66
- integrated enclosure heater
- coated condenser
- protected copper pipes (ambient side)
- improved chemical and salt spray resistance
- RS 485 MODBUS interface included
Quick Links
Cooling capacity L35L35 (EN14511-3) 600 W @ 50 Hz
630 W @ 60 HzCooling capacity L35L50 (EN14511-3) 430 W @ 50 Hz
450 W @ 60 HzEnclosure heater 150 W Compressor type rotary piston compressor Refrigerant / GWP R 134a / 1430 Refrigerant charge 80 g / 2.8 oz High / low Pressure 28 / 6 bar
406 / 88 psiOperating Temperature Range -40˚C - 60˚C UL temperature range -40˚C - 55˚C Air flow volume (system / unimpeded) Ambient: 235 / 408 m³/h
Cabinet: 115 / 180 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
380 x 250 x 250 mm Weight 15.7 kg Voltage / Frequency 230 V ~ 50/60 Hz UL Voltage / Frequency 230 V ~ 60 Hz Current L35L35 2.0 A @ 50 Hz
1.9 A @ 60 HzStarting current 6 A Max. current 2.3 A Nominal power L35L35 411 W @ 50 Hz
415 W @ 60 HzMax. power 540 W Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 1.6 A Full load current fans 0.2 A Connection 3 core cable for power
5 core cable for signals
3 pole terminal block for RS 485 MODBUSDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Taric Code 84158200
Cooling capacity L35L35 (EN14511-3) 630 W @ 50 Hz
665 W @ 60 HzCooling capacity L35L50 (EN14511-3) 510 W @ 50 Hz
530 W @ 60 HzEnclosure heater 150 W Compressor type rotary piston compressor Refrigerant / GWP R 134a / 1430 Refrigerant charge 97 g / 3.4 oz High / low Pressure 28 / 6 bar
406 / 88 psiOperating Temperature Range -40˚C - 60˚C UL temperature range -40˚C - 55˚C Air flow volume (system / unimpeded) Ambient: 235 / 408 m³/h
Cabinet: 115 / 180 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
380 x 250 x 250 mm Weight 15.7 kg Voltage / Frequency 120 V ~ 50/60 Hz UL Voltage / Frequency 120 V ~ 60 Hz Current L35L35 4.9 A @ 50 Hz
3.9 A @ 60 HzStarting current 13 A Max. current 5.1 A Nominal power L35L35 420 W @ 50 Hz
435 W @ 60 HzMax. power 570 W Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 3.7 A Full load current fans 0.38 A Connection 3 core cable for power
5 core cable for signals
3 pole terminal block for RS 485 MODBUSDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DWG Certification CE Declaration of Conformity Certification (UK) UKCA declaration Taric Code 84158200
