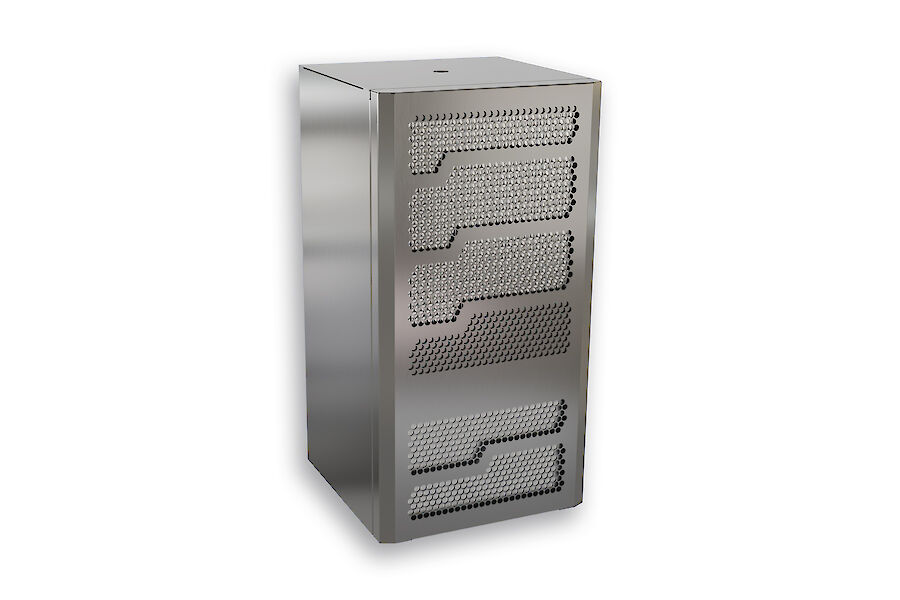

Features
- stainless steel housing AISI 316 (V4A)
- high protection rating of IP 56, NEMA / UL Type 3R/4X
- condensate evaporation IP 66
- integrated enclosure heater
- coated condenser
- protected copper pipes (ambient side)
- improved chemical and salt spray resistance
- RS 485 MODBUS interface included
Quick Links
Cooling capacity L35L35 (EN14511-3) 1120 W @ 50 Hz
1200 W @ 60 HzCooling capacity L35L50 (EN14511-3) 800 W @ 50 Hz
840 W @ 60 HzEnclosure heater 400 W Compressor type Reciprocating compressor Refrigerant / GWP R 134a / 1430 Refrigerant charge 210 g / 7.5 oz High / low Pressure 30 / 6 bar
435 / 88 psiOperating Temperature Range -40 °C - 60 °C UL temperature range -40 °C - 60 °C Air flow volume (system / unimpeded) Ambient air circuit: 280 / 550 m³/h
Cabinet air circuit: 300 / 470 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
585 x 305 x 305 mm Weight 31 kg Cut out dimensions 345 x 235 mm Voltage / Frequency 230 V ~ 50/60 Hz UL Voltage / Frequency 230 V ~ 60 Hz Current L35L35 3.2 A @ 50 Hz
3.6 A @ 60 HzStarting current 15 A Max. current 4.6 A Nominal power L35L35 700 W @ 50 Hz
800 W @ 60 HzMax. power 1.05 kW Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 2.5 A Full load current fans 0.73 A Connection 5 pole terminal block for signals
4 pole terminal block for power
3 pole terminal block for RS 485 MODBUSDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 1120 W @ 50 Hz
1200 W @ 60 HzCooling capacity L35L50 (EN14511-3) 800 W @ 50 Hz
840 W @ 60 HzEER L35L35 1.5 Enclosure heater 400 W Compressor type Reciprocating compressor Refrigerant / GWP R 134a / 1430 Refrigerant charge 210 g / 7.5 oz High / low Pressure 30 / 6 bar
435 / 88 psiOperating Temperature Range -40 °C - 60 °C UL temperature range -40 °C - 60 °C Air flow volume (system / unimpeded) Ambient air circuit: 280 / 550 m³/h
Cabinet air circuit: 300 / 470 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
585 x 305 x 305 mm Weight 34.5 kg Cut out dimensions 345 x 235 mm Voltage / Frequency 120 V ~ 50/60 Hz UL Voltage / Frequency 120 V ~ 60 Hz Current L35L35 6.5 A @ 50 Hz
7.1 A @ 60 HzStarting current 30 A Max. current 9.2 A Nominal power L35L35 700 W @ 50 Hz
800 W @ 60 HzMax. power 1.05 kW Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 5 A Full load current fans 1.5 A Connection 5 pole terminal block for signals
4 pole terminal block for power
3 pole terminal block for RS 485 MODBUSDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Taric code 84158200
Cooling capacity L35L35 (EN14511-3) 1120 W @ 50 Hz
1200 W @ 60 HzCooling capacity L35L50 (EN14511-3) 800 W @ 50 Hz
840 W @ 60 HzEnclosure heater 400 W Compressor type Reciprocating compressor Refrigerant / GWP R 134a / 1430 Refrigerant charge 210 g / 7.5 oz High / low Pressure 30 / 6 bar
435 / 88 psiOperating Temperature Range -40 °C - 60 °C UL temperature range -40 °C - 60 °C Air flow volume (system / unimpeded) Ambient air circuit: 280 / 550 m³/h
Cabinet air circuit: 300 / 470 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
585 x 305 x 305 mm Weight 35 kg Cut out dimensions 345 x 235 mm Voltage / Frequency 400/460 V - 50/60 Hz 2~ UL Voltage / Frequency 460 V / 60 Hz 2~ Current L35L35 1.9 A @ 50 Hz
1.8 A @ 60 HzStarting current 8.6 A Max. current 2.7 A Nominal power L35L35 700 W @ 50 Hz
800 W @ 60 HzMax. power 1.05 kW Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 1.3 A Full load current fans 0.4 A Connection 5 pole terminal block for signals
4 pole terminal block for power
3 pole terminal block for RS 485 MODBUSDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Taric code 84158200
