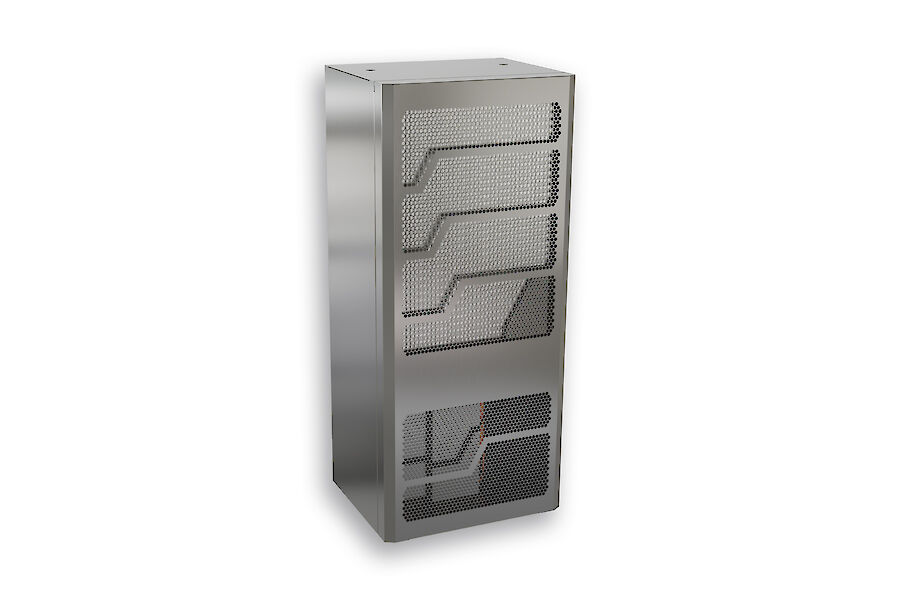

Features
- stainless steel housing AISI 316 (V4A)
- high protection rating of IP 56, NEMA / UL Type 3R/4X
- condensate evaporation IP 66
- integrated enclosure heater
- coated condenser
- protected copper pipes (ambient side)
- improved chemical and salt spray resistance
- RS 485 MODBUS interface included
Cooling capacity L35L35 3.9 kW @ 50 Hz
4.3 kW @ 60 HzCooling capacity L35L50 3.3 kW @ 50 Hz
3.4 kW @ 60 HzEnclosure heater 2,000 W Compressor type Reciprocating compressor Refrigerant / GWP R134a / 1430 Refrigerant charge 606 g / 21.38 oz High / low Pressure 32 / 6 bar
460 / 88 psiOperating Temperature Range -40˚C - +60˚C UL temperature range -40˚C - +60˚C Air flow volume (system / unimpeded) Ambient air circuit: 1085 / 1480 m³/h
Enclosure air circuit: 870 / 1480 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1,040 x 455 x 370 mm Weight 65 kg Voltage / Frequency 230 V ~ 50/60 Hz UL Voltage / Frequency 230 V ~ 60 Hz Current L35L35 8.3 A @ 50 Hz
10.6 A @ 60 HzStarting current 50 A Max. current 14.8 A Nominal power L35L35 1.85 kW @ 50 Hz
2.35 kW @ 60 HzMax. power 3.4 kW Fuse 20 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 7.6 A Full load current fans 1.82 A Connection 5 pole terminal block for signals
4 pole terminal block for power
3 pole terminal block for RS 485 MODBUSDatasheet Generate PDF Instruction manual Generate PDF CAD files oc8740-20220615.stp Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Taric code 84158200
Cooling capacity L35L35 3.7 kW @ 50 Hz
4.2 kW @ 60 HzCooling capacity L35L50 3.2 kW @ 50 Hz
3.4 kW @ 60 HzEnclosure heater 2,000 W Compressor type Reciprocating compressor Refrigerant / GWP R134a / 1430 Refrigerant charge 465 g /16.4 oz High / low Pressure 32 / 6 bar
460 / 88 psiOperating Temperature Range -40˚C - +60˚C UL temperature range -40˚C - +60˚C Air flow volume (system / unimpeded) Ambient air circuit: 1085 / 1480 m³/h
Enclosure air circuit: 870 / 1480 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1,040 x 455 x 370 mm Weight 65 kg Voltage / Frequency 380-415 V 50 Hz 3~
400-460 V 60 Hz 3~UL Voltage / Frequency 460 V / 60Hz 3~ Current L35L35 3.6 A @ 50 Hz
4 A @ 60 HStarting current 19 A Max. current 4.8 A Nominal power L35L35 1.8 kW @ 50 Hz
2.4 kW @ 60 HzMax. power 3.2 kW Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 3.0 A Full load current fans 1.3 A Connection 5 pole terminal block for signals
4 pole terminal block for power
3 pole terminal block for RS 485 MODBUSDatasheet Generate PDF Instruction manual Generate PDF CAD files oc8740-20220615.stp Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Taric code 84158200
