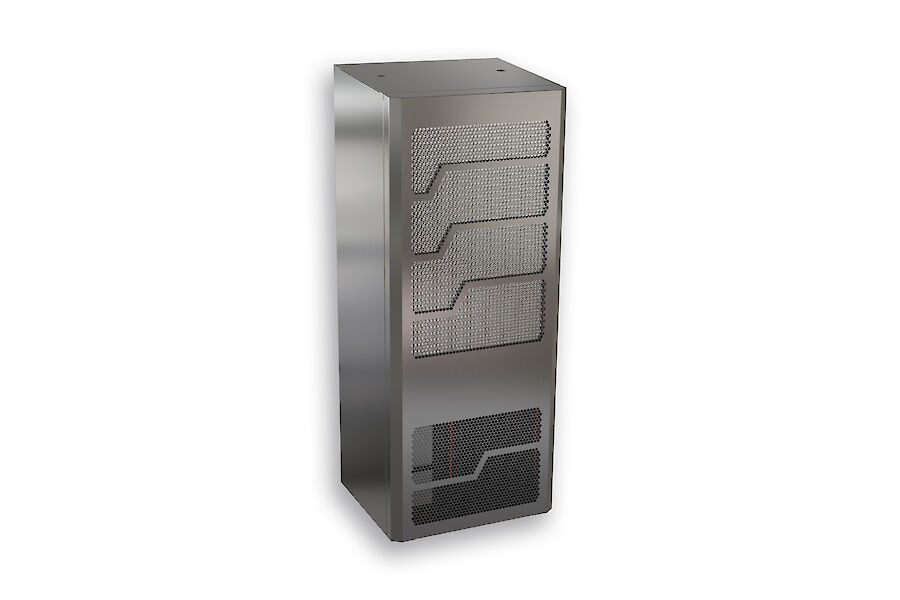

Features
- stainless steel housing AISI 316 (V4A)
- high protection rating of IP 56, NEMA / UL Type 3R/4X
- condensate evaporation IP 66
- integrated enclosure heater
- coated condenser
- protected copper pipes (ambient side)
- improved chemical and salt spray resistance
- RS 485 MODBUS interface included
Quick Links
Cooling capacity L35L35 (EN14511-3) 6000 W @ 50 Hz
6200 W @ 60 HzCooling capacity L35L50 (EN14511-3) 4800 W @ 50 Hz
5400 W @ 60 HzEnclosure heater 2,000 W Compressor type Scroll Refrigerant / GWP R134a / 1430 Refrigerant charge 1140 g / 40.2 oz High / low Pressure 32 / 6 bar
460 / 88 psiOperating Temperature Range -40˚C - 55˚C UL temperature range -40˚C - 55˚C Air flow volume (system / unimpeded) Ambient air circuit: 935 / 1480 m³/h
Enclosure air circuit: 1080 / 1480 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1,135 x 455 x 390 mm Weight 85 kg Voltage / Frequency 380-415 V 50 Hz 3~
400-460 V 60 Hz 3~UL Voltage / Frequency 460 V - 60 Hz 3~ Current L35L35 5.9 A @ 50 Hz
6.2A @ 60 HzStarting current 57 / 44 A Max. current 9.8 A Nominal power L35L35 3.0 kW @ 50 Hz
3.8 kW @ 60 HzMax. power 6.3 kW Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 6.4 A Full load current fans 1.3 A Connection 5 pole terminal block for signals
4 pole terminal block for power
3 pole terminal block for RS 485 MODBUSDatasheet Generate PDF Instruction manual Generate PDF CAD files oc8762protec-20220615.stp Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Taric code 84158200
