Features
- suitable for small enclosures and small control panels
- for indoor and outdoor applications
- maintenance free
- can be mounted in any position
(depending on the installation the condensate management may need to be adjusted)

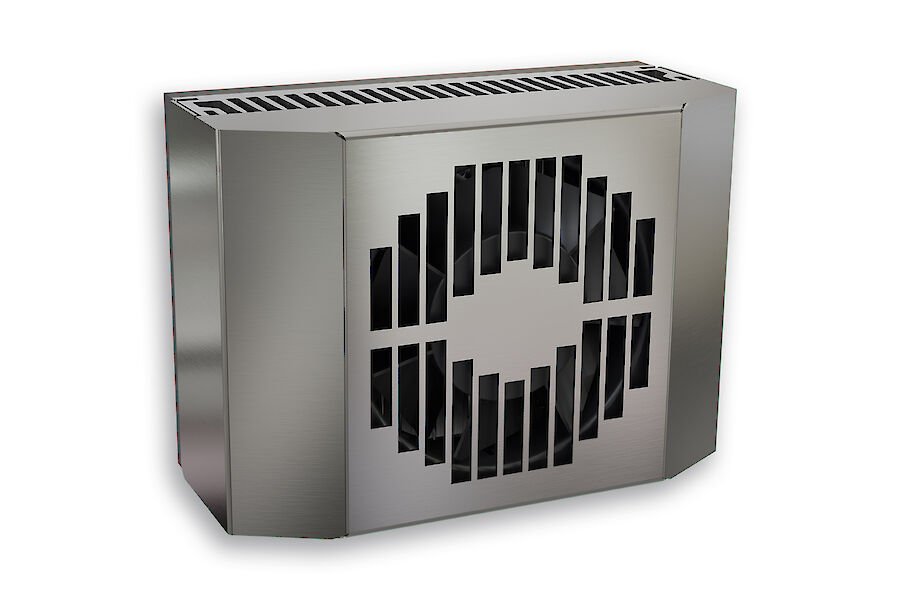

Order Number 3035303 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) IP protection class to EN 60 529 IP 66 / UL Type 12, 4, 4X Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE Accessories Condensate Kit 3030 / 3050 Cooling capacity L35L35 (EN14511-3) 30 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 39 / 75 m³/h
Cabinet air circuit: 20 / 62 m³/hMounting Recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
110 x 154 x 129 (62+67) mm Weight 1.8 kg Cut out dimensions 122 x 82 mm Voltage / Frequency 24 V DC Current L35L35 2 A Starting current 4 A Max. current 2.2 A Nominal power L35L35 44 W Max. power 52 W Fuse 5 A (T) Connection Connection terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files tg3035.stp3035303-cutout.dwg48039.pdf Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 30353034 Box dimension 244 x 187 x 174 mm Gross weight 2.5 kg Taric code 84158300

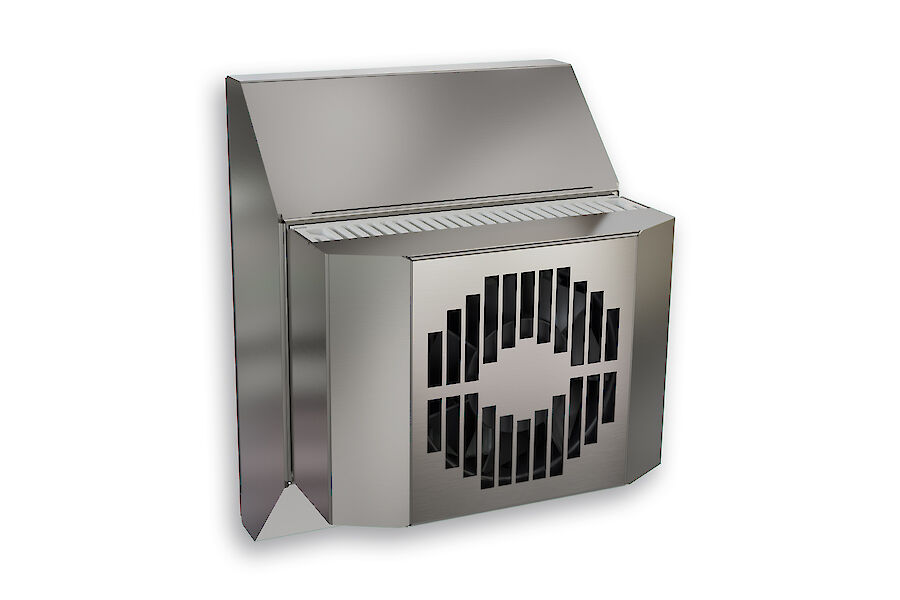

Order Number 3035305 Brand Name SoliTherm Peltier Housing Material Stainless steel AISI 304 (V2A) IP protection class to EN 60 529 IP 66 / UL Type 12, 4, 4X Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE Accessories Condensate Kit 3030 / 3050 Cooling capacity L35L35 (EN14511-3) 30 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 39 / 75 m³/h
Cabinet air circuit: 20 / 62 m³/hMounting Wall mounted (with frame) Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
212 x 158 x 132 mm Weight 2.6 kg Cut out dimensions 180 x 128 mm Voltage / Frequency 24 V DC Current L35L35 2 A Starting current 4 A Max. current 2.2 A Nominal power L35L35 44 W Max. power 52 W Fuse 5 A (T) Connection Connection terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 30353054 Box dimension 244 x 187 x 174 mm Gross weight 2.5 kg Taric code 84158300
