Features
- suitable for stainless steel enclosures and control panels
- for indoor and outdoor applications
- maintenance free
- can be mounted in any position
(depending on the installation the condensate management may need to be adjusted)

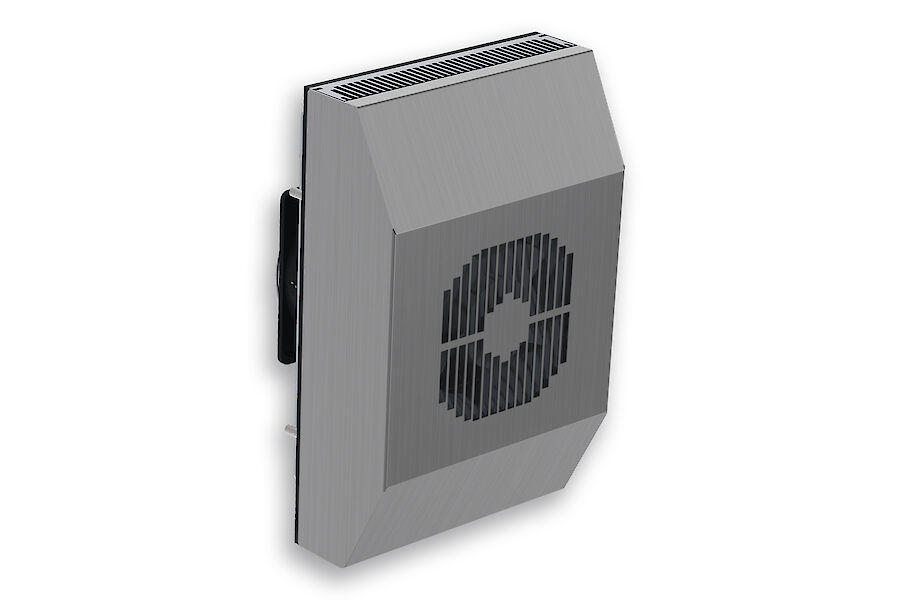

Order Number 3155303 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) IP protection class to EN 60 529 IP 66 / UL Type 12, 4, 4X Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus Accessories Bimetallic temperature controllerThermostat 301510Condensate Kit 3152 / 3200 Cooling capacity L35L35 (EN14511-3) 125 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 182 / 442 m³/h
Cabinet air circuit: 58 / 168 m³/hMounting Recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
306 x 203 x 160 (86+74) mm Weight 6.7 kg Cut out dimensions 260 x 160 mm Voltage / Frequency 24 V DC Current L35L35 7.5 A Starting current 11.3 A Max. current 8.6 A Nominal power L35L35 180 W Max. power 207 W Fuse 12 A (T) Connection Connection terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 31553034 Box dimension 486.6 x 205 x 183.5 mm Gross weight 11 kg Taric code 84158300

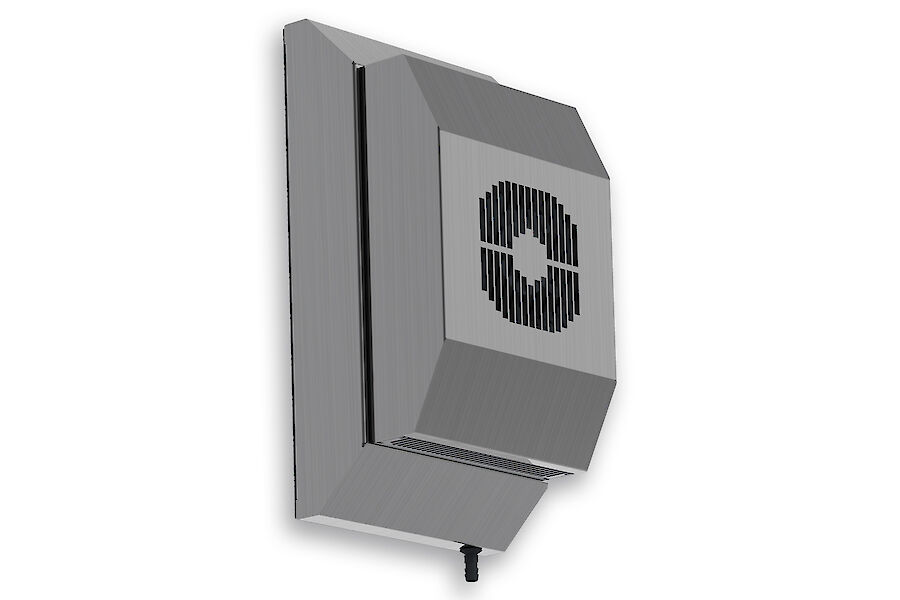

Order Number 3155305 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) IP protection class to EN 60 529 IP 66 / UL Type 12, 4, 4X Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus Accessories Bimetallic temperature controllerThermostat 301510Condensate Kit 3152 / 3200 Cooling capacity L35L35 (EN14511-3) 125 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 182 / 442 m³/h
Cabinet air circuit: 58 / 168 m³/hMounting Wall mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
406 x 217 x 163 mm Weight 6.7 kg Cut out dimensions 260 x 160 mm Voltage / Frequency 24 V DC Current L35L35 7.5 A Starting current 11.3 A Max. current 8.6 A Nominal power L35L35 180 W Max. power 207 W Fuse 12 A (T) Connection Connection terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 31523034 Box dimension 486.6 x 205 x 183.5 mm Gross weight 11 kg Taric code 84158300
