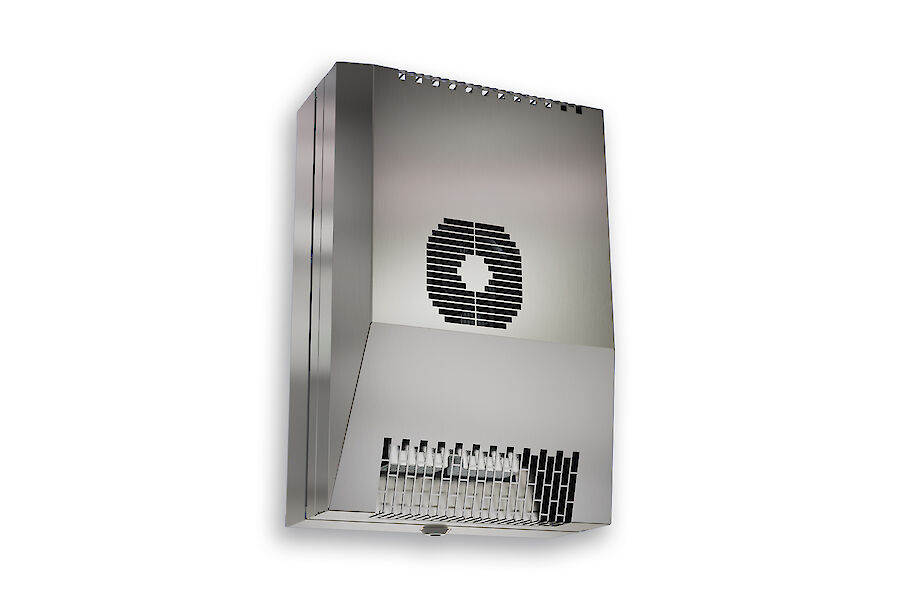

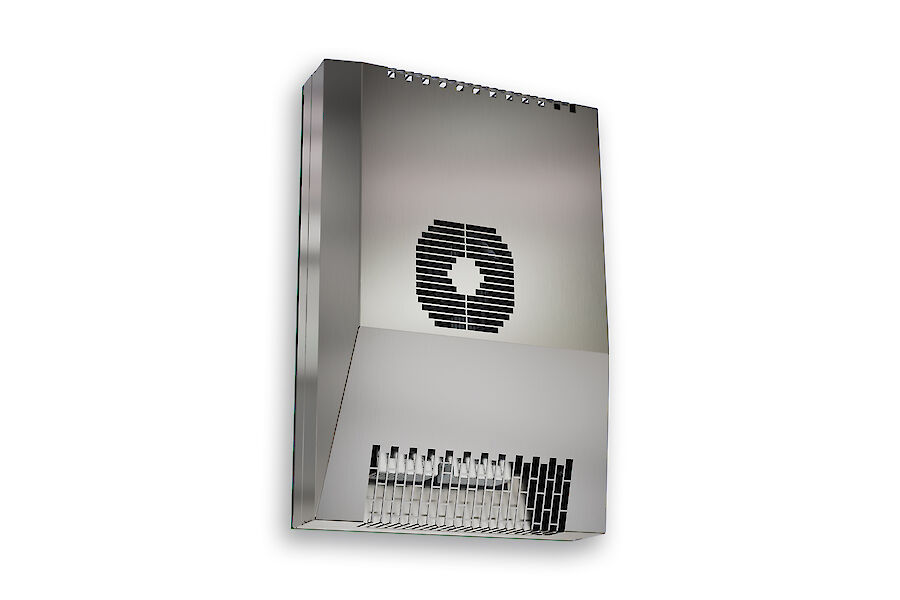

Features
- suitable for stainless steel enclosures and control panels
- for indoor and outdoor applications
- maintenance free
- can be mounted in any position
(depending on the installation the condensate management may need to be adjusted)
Order Number 6155323 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) Ingress Protection IP 66 / UL Type 12, 4, 4X Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus Accessories Condensate Kit 3102 / 6155 / 6205 Cooling capacity L35L35 (EN14511-3) 150 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 120 / 260 m³/h
Cabinet air circuit: 60 / 170 m³/hMounting Recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
500 x 333 x 181 (113+68) mm Weight 18 kg Cut out dimensions 302 x 472 mm Voltage / Frequency 230 V ~ 50/60 Hz Current L35L35 0.7 A Starting current 1.1 A Max. current 0.8 A Nominal power L35L35 170 W Max. power 180 W Fuse 2 A (T) Connection 4 pole power connector
5 pole connector for signalsDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 61553234 Box dimension 586.6 x 354 x 227 mm Gross weight 21.5 kg Taric code 84158300
Order Number 6155313 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) Ingress Protection IP 66 / UL Type 12, 4, 4X Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus Accessories Condensate Kit 3102 / 6155 / 6205 Cooling capacity L35L35 (EN14511-3) 150 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 120 / 260 m³/h
Cabinet air circuit: 60 / 170 m³/hMounting Recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
500 x 333 x 181 (113+68) mm Weight 18 kg Cut out dimensions 302 x 472 mm Voltage / Frequency 120 V ~ 60 Hz Current L35L35 1.4 A Starting current 2.1 A Max. current 1.5 A Nominal power L35L35 170 W Max. power 180 W Fuse 3 A (T) Connection 4 pole power connector
5 pole connector for signalsDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 61553134 Box dimension 586.6 x 354 x 227 mm Gross weight 21.5 kg Taric code 84158300
Order Number 6155325 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) Ingress Protection IP 66 / UL Type 12, 4, 4X Included Condensate drain socket Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus Cooling capacity L35L35 (EN14511-3) 150 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 120 / 260 m³/h
Cabinet air circuit: 60 / 170 m³/hMounting Wall mounted (with frame) Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
500 x 333 x 187 mm Weight 19 kg Cut out dimensions 244 x 428 mm Voltage / Frequency 230 V ~ 50/60 Hz Current L35L35 0.7 A Starting current 1.1 A Max. current 0.8 A Nominal power L35L35 170 W Max. power 180 W Fuse 2 A (T) Connection 4 pole power connector
5 pole connector for signalsDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 61553254 Box dimension 586.6 x 354 x 227 mm Gross weight 22.5 kg Taric code 84158300
Order Number 6155315 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) Ingress Protection IP 66 / UL Type 12, 4, 4X Included Condensate drain socket Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus Cooling capacity L35L35 (EN14511-3) 150 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 120 / 260 m³/h
Cabinet air circuit: 60 / 170 m³/hMounting Wall mounted (with frame) Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
500 x 333 x 187 mm Weight 19 kg Cut out dimensions 244 x 428 mm Voltage / Frequency 120 V ~ 60 Hz Connection 4 pole power connector
5 pole connector for signalsDatasheet Generate PDF Instruction manual Generate PDF CAD files 62053x5.stp Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 61553154 Box dimension 586.6 x 354 x 227 mm Gross weight 22.5 kg Taric code 84158300
