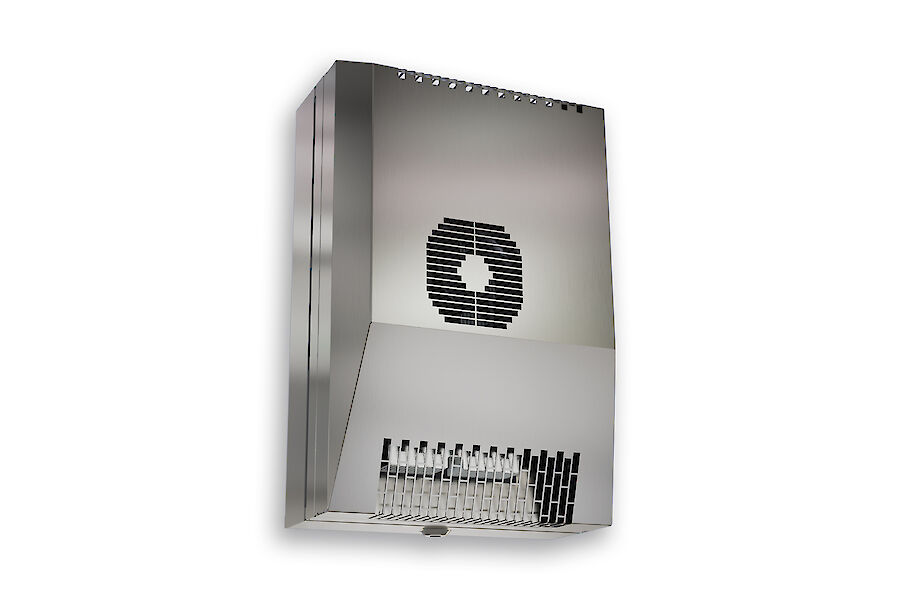

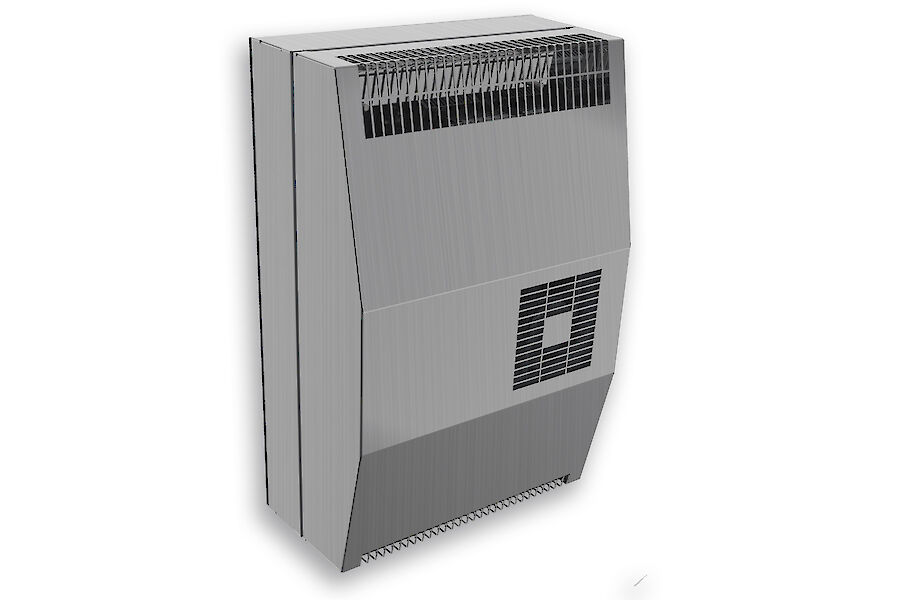

Features
- suitable for stainless steel enclosures and control panels
- for indoor and outdoor applications
- maintenance free
- can be mounted in any position
(depending on the installation the condensate management may need to be adjusted)
Order Number 6205323 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) IP protection class to EN 60 529 IP 66 / UL Type 12, 4, 4X Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus Accessories Condensate Kit 3102 / 6155 / 6205 Cooling capacity L35L35 (EN14511-3) 200 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 106 / 260 m³/h
Cabinet air circuit: 150 / 260 m³/hMounting Recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
500 x 333 x 181 (113+68) mm Weight 17.2 kg Cut out dimensions 472 x 302 mm Voltage / Frequency 230 V ~ 50/60 Hz Current L35L35 1.1 A Starting current 1.7 A Max. current 1.2 A Nominal power L35L35 250 W Max. power 270 W Fuse 3 A (T) Connection 4 pole power connector
5 pole connector for signalsDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template Mounting Template Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 62053234 Box dimension 586.6 x 354 x 227 mm Gross weight 20.5 kg Taric code 84158300
Order Number 6205313 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) IP protection class to EN 60 529 IP 66 / UL Type 12, 4, 4X Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus Accessories Condensate Kit 3102 / 6155 / 6205 Cooling capacity L35L35 (EN14511-3) 200 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 106 / 260 m³/h
Cabinet air circuit: 150 / 260 m³/hMounting Recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
500 x 333 x 181 (113+68) mm Weight 17.2 kg Cut out dimensions 472 x 302 mm Voltage / Frequency 120 V ~ 60 Hz Current L35L35 2.1 A Starting current 3.2 A Max. current 2.2 A Nominal power L35L35 250 W Max. power 270 W Fuse 4 A (T) Connection 4 pole power connector
5 pole connector for signalsDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template Mounting Template Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 62053134 Box dimension 586.6 x 354 x 227 mm Gross weight 20.5 kg Taric code 84158300
Cooling capacity L35L35 (EN14511-3) 200 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 106 / 260 m³/h
Cabinet air circuit: 150 / 260 m³/hMounting Wall mounted (with frame) Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
500 x 333 x 187 mm Weight 21 kg Cut out dimensions 244 x 428 mm Voltage / Frequency 230 V ~ 50/60 Hz Current L35L35 1.1 A Starting current 1.7 A Max. current 1.2 A Nominal power L35L35 250 W Max. power 270 W Fuse 3 A (T) Connection 4 pole power connector
5 pole connector for signalsDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 62053254 Box dimension 586.6 x 354 x 227 mm Gross weight 24.3 kg Taric code 84158300
Cooling capacity L35L35 (EN14511-3) 200 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 106 / 260 m³/h
Cabinet air circuit: 150 / 260 m³/hMounting Wall mounted (with frame) Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
500 x 333 x 187 mm Weight 21 kg Cut out dimensions 244 x 428 mm Voltage / Frequency 120 V ~ 60 Hz Current L35L35 2.1 A Starting current 3.2 A Max. current 2.2 A Nominal power L35L35 250 W Max. power 270 W Fuse 4 A (T) Connection 4 pole power connector
5 pole connector for signalsDatasheet Generate PDF Instruction manual Generate PDF CAD files 62053x5.stp Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 62053154 Box dimension 586.6 x 354 x 227 mm Gross weight 24.3 kg Taric code 84158300
