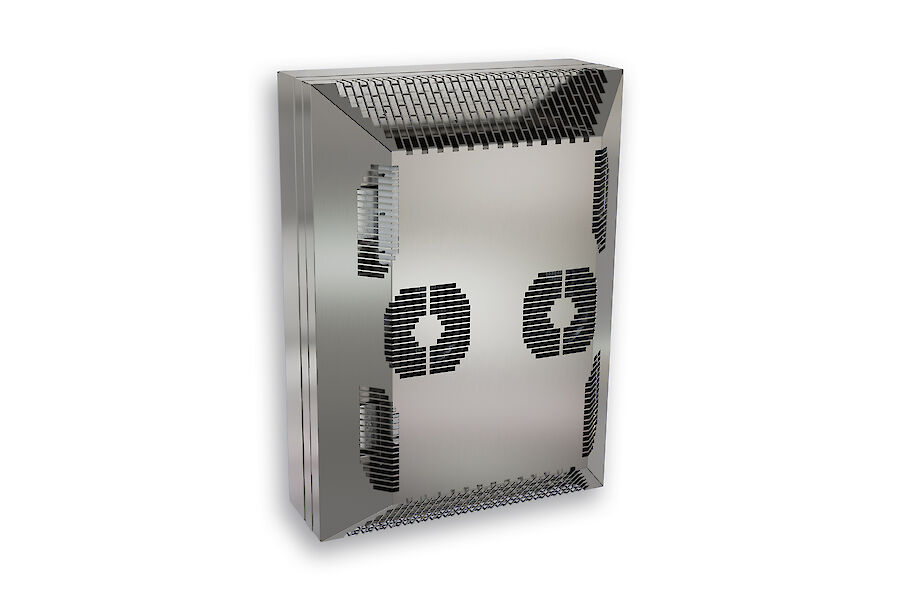

Features
- suitable for stainless steel enclosures and control panels
- for indoor and outdoor applications
- maintenance free
- can be mounted in any position
(depending on the installation the condensate management may need to be adjusted)
Order Number 6405323 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) Ingress Protection IP 66 / UL Type 12, 4, 4X Approvals CE, cURus Accessories Condensate Kit 6405 Cooling capacity L35L35 (EN14511-3) 400 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 240 / 325 m³/h

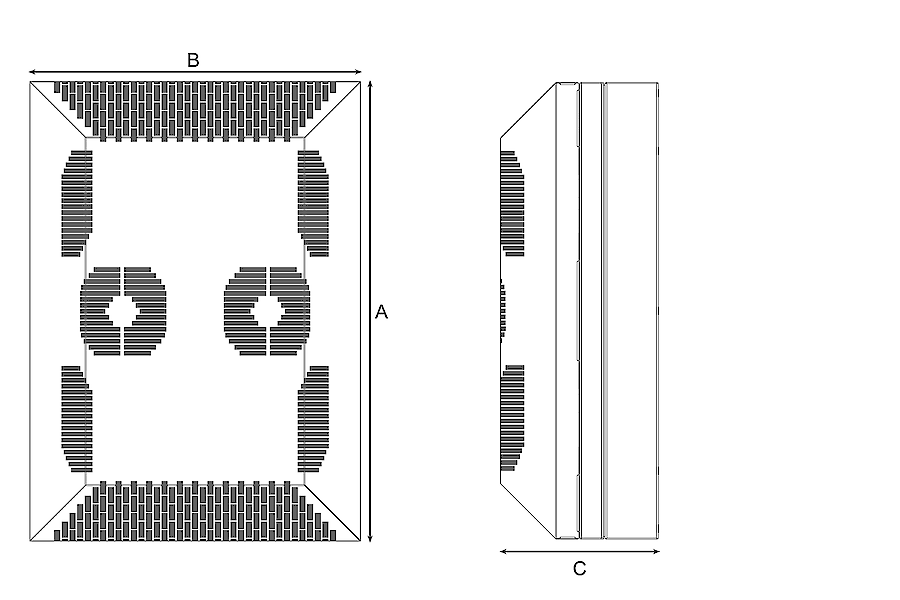

Cabinet air circuit: 240 / 325 m³/hMounting Recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
600 x 433 x 199 (133+66) mm Weight 34 kg Cut out dimensions 382 x 550 mm Voltage / Frequency 230 V ~ 50/60 Hz Current L35L35 2.1 A Starting current 3.4 A Max. current 2.3 A Nominal power L35L35 490 W Max. power 537 W Fuse 4 A (T) Connection 4 pole power connector
5 pole connector for signalsDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 64053234 Box dimension 686.6 x 454 x 232 mm Gross weight 38 kg Taric code 84158300
Order Number 6405313 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) Ingress Protection IP 66 / UL Type 12, 4, 4X Approvals CE, cURus Accessories Condensate Kit 6405 Cooling capacity L35L35 (EN14511-3) 400 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 240 / 325 m³/h
Cabinet air circuit: 240 / 325 m³/hMounting Recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
600 x 433 x 199 (133+66) Weight 34 kg Cut out dimensions 382 x 550 mm Voltage / Frequency 120 V ~ 60 Hz Current L35L35 4.1 A Starting current 6.5 A Max. current 4.5 A Nominal power L35L35 490 W Max. power 537 W Fuse 7 A (T) Connection 4 pole power connector
5 pole connector for signalsDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Mit Edelstahlgehäuse AISI 316 (V4A) Bestell Nr. 64053134 Verpackungsmaße 686.6 x 454 x 232 mm Bruttogewicht 38 kg Zolltarifnummer 84158300

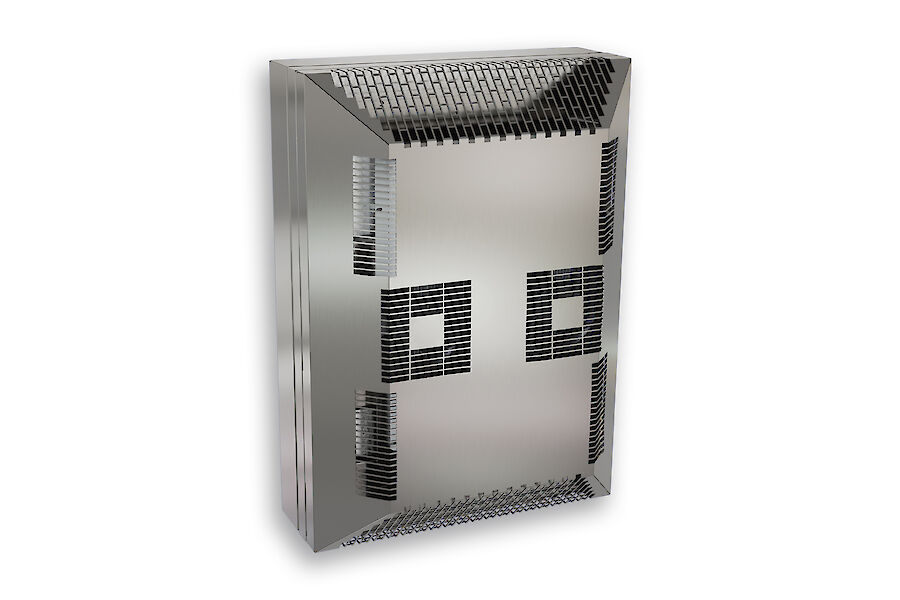

Order Number 6405325 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) Ingress Protection IP 66 / UL Type 12, 4, 4X Included Condensate drain socket Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus Cooling capacity L35L35 (EN14511-3) 400 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 240 / 325 m³/h
Cabinet air circuit: 240 / 325 m³/hMounting Wall mounted (with frame) Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
600 x 433 x 203 mm Weight 37 kg Cut out dimensions 382 x 550 mm Voltage / Frequency 230 V ~ 50/60 Hz Current L35L35 2.1 A Starting current 3.4 A Max. current 2.3 A Nominal power L35L35 490 W Max. power 537 W Fuse 4 A (T) Connection 4 pole power connector
5 pole connector for signalsDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 64053254 Box dimension 686.6 x 454 x 232 mm Gross weight 41 kg Taric code 84158300
Order Number 6405315 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) Ingress Protection IP 66 / UL Type 12, 4, 4X Included Condensate drain socket Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus Cooling capacity L35L35 (EN14511-3) 400 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 240 / 325 m³/h
Cabinet air circuit: 240 / 325 m³/hMounting Wall mounted (with frame) Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
600 x 433 x 203 mm Weight 37 kg Cut out dimensions 382 x 550 mm Voltage / Frequency 120 V ~ 60 Hz Current L35L35 4.1 A Starting current 6.5 A Max. current 4.5 A Nominal power L35L35 490 W Max. power 537 W Fuse 7 A (T) Connection 4 pole power connector
5 pole connector for signalsDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 64053154 Box dimension 686.6 x 454 x 232 mm Gross weight 41 kg Taric code 84158300
