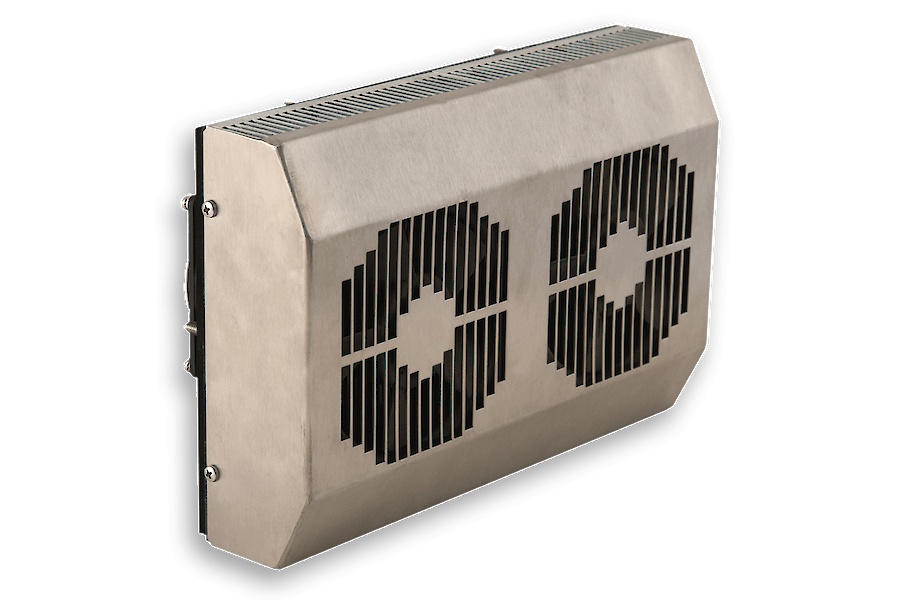

Features
- suitable for stainless steel enclosures and control panels
- for indoor and outdoor applications
- maintenance free
- can be mounted in any position
(depending on the installation the condensate management may need to be adjusted)
Cooling capacity L35L35 (EN14511-3) 100 W Air flow volume (system / unimpeded) Ambient air circuit: 128 / 213 m³/h
Cabinet air circuit: 46 / 90 m³/hOperating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Mounting Recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
200 x 305 x 138 (65+73) mm Weight 5.9 kg Cut out dimensions 260 x 160 mm Voltage / Frequency 24 V DC Current L35L35 4.8 A Starting current 7.4 A Max. current 5.6 A Nominal power L35L35 124 W Max. power 132 W Fuse 8 A (T) Connection Connection terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files 3102303.stp60450.pdf Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Type Plate 3102302.pdf No Order Information
