Features
- suitable for stainless steel enclosures and control panels
- for indoor and outdoor applications
- maintenance free
- can be mounted in any position
(depending on the installation the condensate management may need to be adjusted)

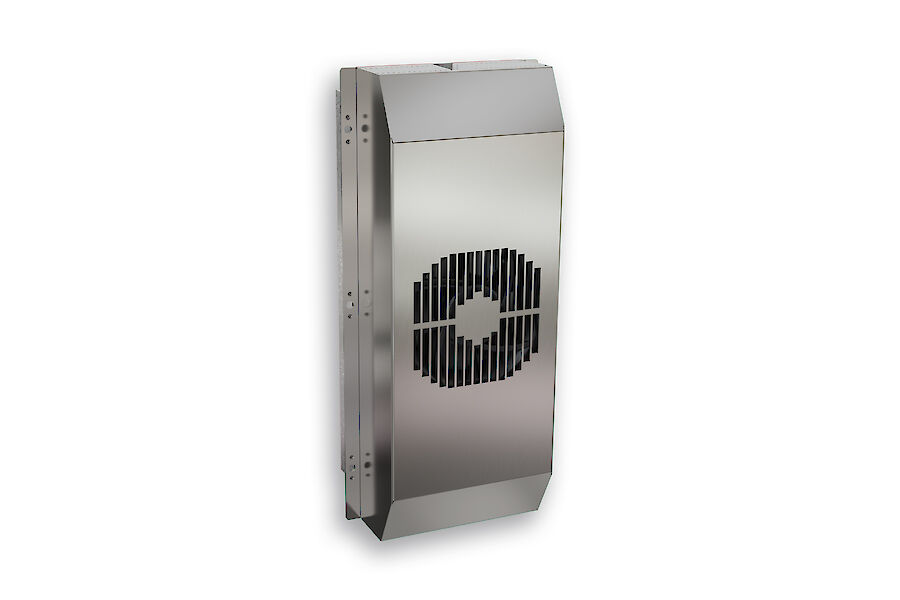

Order Number 3200303 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) Ingress Protection IP 66 / UL Type 12, 4, 4X Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus Accessories Bimetallic temperature controllerThermostat 301510Condensate Kit 3152 / 3200 Cooling capacity L35L35 (EN14511-3) 200 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 120 / 260 m³/h
Cabinet air circuit: 120 / 260 m³/hMounting Recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
400 x 180 x 170 (79+91) mm Weight 10 kg Cut out dimensions 370 x 155 mm Voltage / Frequency 24 V DC Current L35L35 11.3 A Starting current 16.9 A Max. current 12.9 A Nominal power L35L35 270 W Max. power 311 W Fuse 18 A (T) Connection Connection terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files 19600.pdf3200303.stp Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 32003034 Box dimension 486.6 x 205 x 183.5 mm Gross weight 12 kg Taric code 84158300

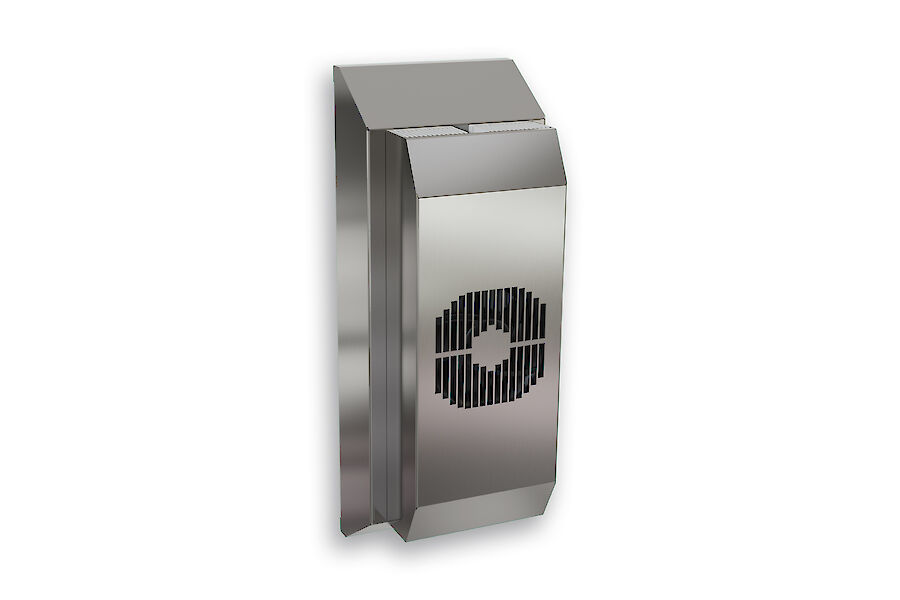

Order Number 3200305 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) Ingress Protection IP 66 / UL Type 12, 4, 4X Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus Accessories Bimetallic temperature controllerThermostat 301510Condensate Kit 3152 / 3200 Cooling capacity L35L35 (EN14511-3) 200 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 120 / 260 m³/h
Cabinet air circuit: 120 / 260 m³/hMounting Wall mounted (with frame) Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
500 x 188 x 172 mm Weight 13.7 kg Cut out dimensions 469 x 155 mm Voltage / Frequency 24 V DC Current L35L35 11.3 A Starting current 16.9 A Max. current 12.9 A Nominal power L35L35 270 W Max. power 311 W Fuse 18 A (T) Connection Connection terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files 3200305.stp19600.pdf Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 32003054 Box dimension 486.6 x 205 x 183.5 mm Gross weight 15.7 kg Taric code 84158300
Order Number 3200308 Brand Name SoliTherm Peltier Housing Material Stainless steel AISI 304 (V2A) Ingress Protection IP 66 / UL Type 12, 4, 4X Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus Accessories Condensate Kit 3152 / 3200 Cooling capacity L35L35 (EN14511-3) 200 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 120 / 260 m³/h
Cabinet air circuit: 120 / 260 m³/hMounting Recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
400 x 180 x 170 (79+91) mm Weight 10 kg Cut out dimensions 370 x 155 mm Voltage / Frequency 48 V DC Current L35L35 4.7 A Starting current 9.5 A Max. current 7.5 A Nominal power L35L35 270 W Max. power 360 W Fuse 10 A (T) Connection Connection terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files 19600.pdf3200303.stp Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 32003084 Box dimension 486.6 x 205 x 183.5 mm Gross weight 12 kg Taric code 84158300
Order Number 3200310 Brand Name SoliTherm Peltier Housing Material Stainless steel AISI 304 (V2A) Ingress Protection IP 66 Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus Accessories Condensate Kit 3152 / 3200 Cooling capacity L35L35 (EN14511-3) 200 W Operating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Air flow volume (system / unimpeded) Ambient air circuit: 120 / 260 m³/h
Cabinet air circuit: 120 / 260 m³/hMounting Wall mounted (with frame) Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
500 x 188 x 172 mm Weight 13.7 kg Cut out dimensions 469 x 155 mm Voltage / Frequency 48 V DC Current L35L35 4.7 A Starting current 9.5 A Max. current 7.5 A Nominal power L35L35 270 W Max. power 360 W Fuse 10 A (T) Connection Connection terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 32003104 Box dimension 486.6 x 205 x 183.5 mm Gross weight 15.7 kg Taric code 84158300
