Features
- modern industrial design
- same enclosure cutout like 825 W and 1.2 kW cooling units
- protection class IP 55 / UL Type 12 (in stainless steel IP 56 / UL Type 3, 3R, 4, 4X)
- built-in electrical condensate evaporator
- wall mounted or recessed installation

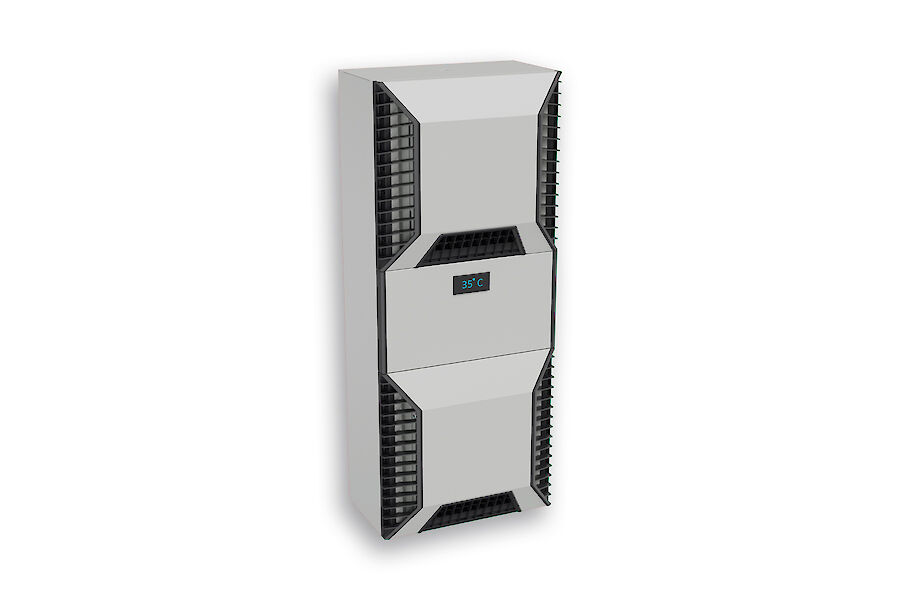

Order Number 841200001 Brand Name SLIMLINE PRO Colour RAL 7035 Housing Material Mild steel, powder coated IP protection class to EN 60 529 IP 55 / Type 12 Note Has the same cutout like KG 8508 and KG 8512 Approvals CE, cURus, cULus Accessories Gasket Kit Type 4Cold Air Outlet Duct 8508/12/8412Washable Aluminium Filter 8508/12/8412Vibration Protection Kit 1 Cooling capacity L35L35 (EN14511-3) 1500 W @ 50 Hz
1550 W @ 60 HzCooling capacity L35L50 (EN14511-3) 1270 W @ 50 Hz
1330 W @ 60 HzEER L35L35 2.20 Compressor type Rotary piston Refrigerant / GWP R134a / 1430 Refrigerant charge 267 g / 9.4 oz High / low Pressure 30 / 6 bar
435 / 88 psiOperating Temperature Range 10°C - 60°C UL temperature range 10°C - 60°C Air flow volume (system / unimpeded) Ambient air circuit: 550 / 850 m³/h
Enclosure air circuit: 350 / 850 m³/hMounting Wall mounted / recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
950 x 395 x 250 (55+195) mm Weight 38.5 kg Voltage / Frequency 230 V ~ 50/60 Hz UL Voltage / Frequency 230 V ~ 60 Hz Current L35L35 3.2 A @ 50 Hz
3.6 A @ 60 HzStarting current 16 A Max. current 4.7 A Nominal power L35L35 680 W @ 50 Hz
830 W @ 60 HzMax. power 1.1 kW Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 2.5 A Full load current fans 0.7 A Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF2D - PDF with air flow ductSTEP with air flow duct Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Video SLIMLINE PRO cleaning and maintenanceSLIMLINE PRO mounting Box dimensions 1042 x 495 x 283 mm Gross weight 44 Kg Taric code 84158200

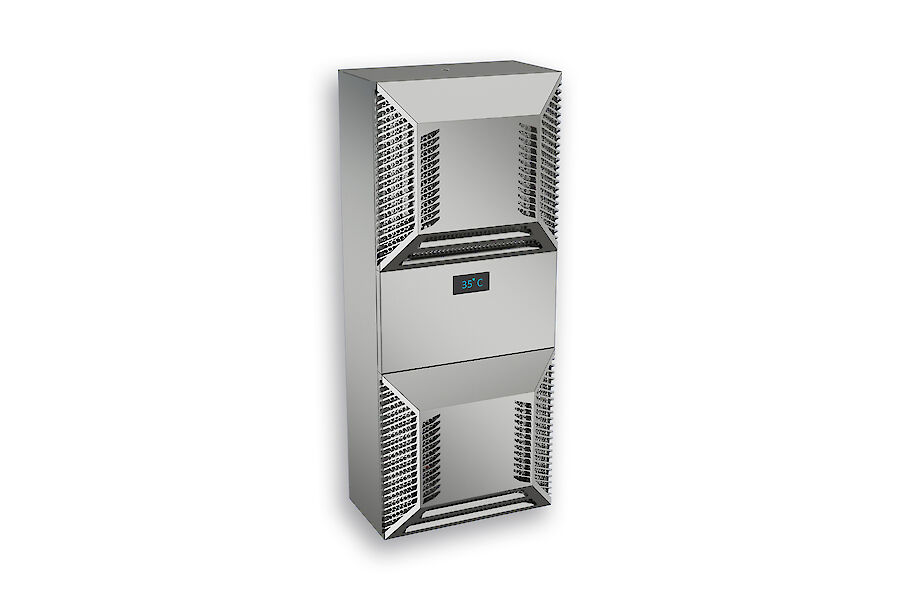

Order Number 841200S62 Brand Name SLIMLINE PRO Housing Material Stainless steel AISI 304 (V2A) IP protection class to EN 60 529 IP 56 / Type 12, 3, 3R, 4, 4X Note Has the same cutout like KG 8508 and KG 8512 Approvals CE, cURus, cULus Accessories Cold Air Outlet Duct 8508/12/8412Washable Aluminium Filter 8508/12/8412Vibration Protection Kit 1 Cooling capacity L35L35 (EN14511-3) 1500 W @ 50 Hz
1550 W @ 60 HzCooling capacity L35L50 (EN14511-3) 1270 W @ 50 Hz
1330 W @ 60 HzEER L35L35 2.20 Compressor type Rotary piston Refrigerant / GWP R134a / 1430 Refrigerant charge 267 g / 9.4 oz High / low Pressure 30 / 6 bar
435 / 88 psiOperating Temperature Range 10°C - 60°C UL temperature range 10°C - 60°C Air flow volume (system / unimpeded) Ambient air circuit: 550 / 850 m³/h
Enclosure air circuit: 350 / 850 m³/hMounting Wall mounted / recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
950 x 395 x 250 (55+195) mm Weight 38.5 kg Voltage / Frequency 230 V ~ 50/60 Hz UL Voltage / Frequency 230 V ~ 60 Hz Current L35L35 3.2 A @ 50 Hz
3.6 A @ 60 HzStarting current 16 A Max. current 4.7 A Nominal power L35L35 680 W @ 50 Hz
830 W @ 60 HzMax. power 1.1 kW Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 2.5 A Full load current fans 0.7 A Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF2D - PDF with air flow ductSTEP with air flow duct Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Video SLIMLINE PRO cleaning and maintenanceSLIMLINE PRO mounting Box dimensions 1042 x 495 x 283 mm Gross weight 46 Kg Taric code 84158200
Order Number 841210001 Brand Name SLIMLINE PRO Colour RAL 7035 Housing Material Mild steel, powder coated IP protection class to EN 60 529 IP 55 / Type 12 Note Has the same cutout like KG 8508 and KG 8512 Approvals CE, cURus, cULus Accessories Gasket Kit Type 4Cold Air Outlet Duct 8508/12/8412Washable Aluminium Filter 8508/12/8412Vibration Protection Kit 1 Cooling capacity L35L35 (EN14511-3) 1500 W @ 50 Hz
1550 W @ 60 HzCooling capacity L35L50 (EN14511-3) 1270 W @ 50 Hz
1330 W @ 60 HzEER L35L35 2.20 Compressor type Rotary piston Refrigerant / GWP R134a / 1430 Refrigerant charge 267 g / 9.4 oz. High / low Pressure 30 / 6 bar
435 / 88 psiOperating Temperature Range 10°C - 60°C UL temperature range 10°C - 60°C Air flow volume (system / unimpeded) Ambient air circuit: 550 / 850 m³/h
Enclosure air circuit: 350 / 850 m³/hMounting Wall mounted / recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
950 x 395 x 250 (55+195) mm Weight 45 kg Voltage / Frequency 120 V ~ 50/60 Hz UL Voltage / Frequency 120 V ~ 60 Hz Current L35L35 6.4 A @ 50 Hz
7.2 A @ 60 HzStarting current 32 A Max. current 9.4 A Nominal power L35L35 680 W @ 50 Hz
830 W @ 60 HzMax. power 1.1 kW Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 5 A Full load current fans 1.5 A Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF2D - PDF with air flow ductSTEP with air flow duct Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Video SLIMLINE PRO cleaning and maintenanceSLIMLINE PRO mounting Box dimensions 1042 x 495 x 283 mm Gross weight 46 Kg Taric code 84158200
Order Number 841210S62 Brand Name SLIMLINE PRO Housing Material Stainless steel AISI 304 (V2A) IP protection class to EN 60 529 IP 56 / Type 12, 3, 3R, 4, 4X Note Has the same cutout like KG 8508 and KG 8512 Approvals CE, cURus, cULus Accessories Cold Air Outlet Duct 8508/12/8412Washable Aluminium Filter 8508/12/8412Vibration Protection Kit 1 Cooling capacity L35L35 (EN14511-3) 1500 W @ 50 Hz
1550 W @ 60 HzCooling capacity L35L50 (EN14511-3) 1270 W @ 50 Hz
1330 W @ 60 HzEER L35L35 2.20 Compressor type Rotary piston Refrigerant / GWP R134a / 1430 Refrigerant charge 267 g / 9.4 oz. High / low Pressure 30 / 6 bar
435 / 88 psiOperating Temperature Range 10°C - 60°C UL temperature range 10°C - 60°C Air flow volume (system / unimpeded) Ambient air circuit: 550 / 850 m³/h
Enclosure air circuit: 350 / 850 m³/hMounting Wall mounted / recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
950 x 395 x 250 (55+195) mm Weight 45 kg Voltage / Frequency 120 V ~ 50/60 Hz UL Voltage / Frequency 120 V ~ 60 Hz Current L35L35 6.4 A @ 50 Hz
7.2 A @ 60 HzStarting current 32 A Max. current 9.4 A Nominal power L35L35 680 W @ 50 Hz
830 W @ 60 HzMax. power 1.1 kW Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 5 A Full load current fans 1.5 A Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF2D - PDF with air flow ductSTEP with air flow duct Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Video SLIMLINE PRO cleaning and maintenanceSLIMLINE PRO mounting Box dimensions 1042 x 495 x 283 mm Gross weight 46 Kg Taric code 84158200
Order Number 841220001 Brand Name SLIMLINE PRO Colour RAL 7035 Housing Material Mild steel, powder coated IP protection class to EN 60 529 IP 55 / Type 12 Note Has the same cutout like KG 8508 and KG 8512 Approvals CE, cURus, cULus Accessories Gasket Kit Type 4Cold Air Outlet Duct 8508/12/8412Washable Aluminium Filter 8508/12/8412Vibration Protection Kit 1 Cooling capacity L35L35 (EN14511-3) 1.50 kW @ 50 Hz
1.65 kW @ 60 HzCooling capacity L35L50 (EN14511-3) 1.30 kW @ 50 Hz
1.45 kW @ 60 HzEER L35L35 2.20 Compressor type Rotary piston Refrigerant / GWP R134a / 1430 Refrigerant charge 247 g / 8.7 oz. High / low Pressure 30 / 6 bar
435 / 88 psiOperating Temperature Range 10°C - 60°C UL temperature range 10°C - 60°C Air flow volume (system / unimpeded) Ambient air circuit: 550 / 850 m³/h
Enclosure air circuit: 350 / 850 m³/hMounting Wall mounted / recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
950 x 395 x 250 (55+195) mm Weight 40 kg Voltage / Frequency 380-415 V 50 Hz 3~
400-460 V 60 Hz 3~UL Voltage / Frequency 460 V / 60Hz 3~ Current L35L35 1.7 A @ 50 Hz
1.7 A @ 60 HzStarting current 8.2 A Max. current 2.0 A Nominal power L35L35 710 W @ 50 Hz
925 W @ 60 HzMax. power 1.18 kW Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 1.3 A Full load current fans 1.3 A Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF2D - PDF with air flow ductSTEP with air flow duct Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Video SLIMLINE PRO cleaning and maintenanceSLIMLINE PRO mounting Box dimensions 1042 x 495 x 283 mm Gross weight 46 Kg Taric code 84158200
Order Number 841220S62 Brand Name SLIMLINE PRO Housing Material Stainless steel AISI 304 (V2A) IP protection class to EN 60 529 IP 56 / Type 12, 3, 3R, 4, 4X Note Has the same cutout like KG 8508 and KG 8512 Approvals CE, cURus, cULus Accessories Cold Air Outlet Duct 8508/12/8412Washable Aluminium Filter 8508/12/8412Vibration Protection Kit 1 Cooling capacity L35L35 (EN14511-3) 1.50 kW @ 50 Hz
1.65 kW @ 60 HzCooling capacity L35L50 (EN14511-3) 1.30 kW @ 50 Hz
1.45 kW @ 60 HzEER L35L35 2.20 Compressor type Rotary piston Refrigerant / GWP R134a / 1430 Refrigerant charge 247 g / 8.7 oz. High / low Pressure 30 / 6 bar
435 / 88 psiOperating Temperature Range 10°C - 60°C UL temperature range 10°C - 60°C Air flow volume (system / unimpeded) Ambient air circuit: 550 / 850 m³/h
Enclosure air circuit: 350 / 850 m³/hMounting Wall mounted / recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
950 x 395 x 250 (55+195) mm Weight 40 kg Voltage / Frequency 380-415 V 50 Hz 3~
400-460 V 60 Hz 3~UL Voltage / Frequency 460 V / 60Hz 3~ Current L35L35 1.7 A @ 50 Hz
1.7 A @ 60 HzStarting current 8.2 A Max. current 2.0 A Nominal power L35L35 710 W @ 50 Hz
925 W @ 60 HzMax. power 1.18 kW Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 1.3 A Full load current fans 1.3 A Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF2D - PDF with air flow ductSTEP with air flow duct Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Video SLIMLINE PRO cleaning and maintenanceSLIMLINE PRO mounting Box dimensions 1042 x 495 x 283 mm Gross weight 46 Kg Taric code 84158200
