Features
- modern industrial design
- compact size for small enclosures or cabinets
- protection class IP 55 / UL Type 12 (in stainless steel IP 56 / UL Type 3, 3R, 4, 4X)
- built-in electrical condensate evaporator
- wall mounted or recessed installation
- noise-reduced versions for special requirements on request

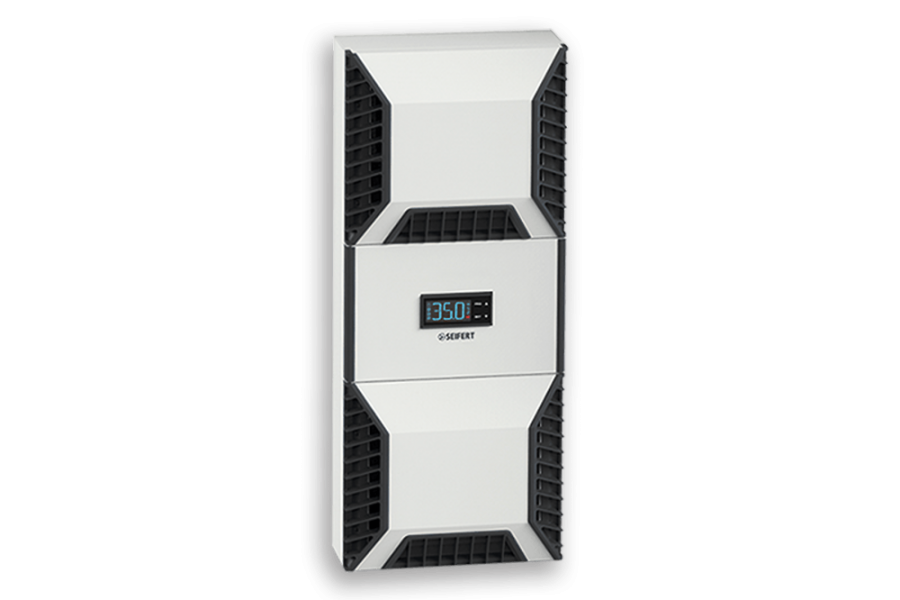

Order Number 85069611 Brand Name SLIMLINE PRO Colour RAL 7035 Housing Material Mild steel, powder coated IP protection class to EN 60 529 IP 55 / Type 12 SK notes Packing bag without cable grommets and covering plate.
Customer will make a cable relief with the existing fixing point, but does not use the cover / grommetApprovals CE, cURus, cULus Cooling capacity L35L35 (EN14511-3) 670 W @ 50 Hz
680 W @ 60 HzCooling capacity L35L50 (EN14511-3) 435 W @ 50 Hz
450 W @ 60 HzEER L35L35 1.8 / 1.7 Compressor type Rotary piston Refrigerant / GWP R 513A / 630 Refrigerant charge 117 g / 4.1 oz High / low Pressure 28 / 6 bar
406 / 88 psiAir flow volume (system / unimpeded) Ambient air circuit: 200 / 408 m³/h
Cabinet air circuit: 122 / 180 m³/hOperating Temperature Range 10°C - 55°C UL temperature range 10°C - 55°C Mounting Wall mounted / recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
600 x 250 x 135 (45+90) mm Weight 14 kg Voltage / Frequency 230 V ~ 50/60 Hz UL Voltage / Frequency 230 V ~ 60 Hz Current L35L35 1.9 A @ 50 Hz
1.9 A @ 60 HzStarting current 6 A Max. current 2.5 A Nominal power L35L35 380 W @ 50 Hz
390 W @ 60 HzMax. power 560 W Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 1.6 A Full load current fans 0.2 A Connection 4 pole connector for power
5 pole connector for signals
3 pole connector for RS 485 MODBUSDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Video SLIMLINE PRO cleaning and maintenanceSLIMLINE PRO mounting Box dimensions 692 x 350 x 164 mm Gross weight 15 Kg Taric code 84158200
