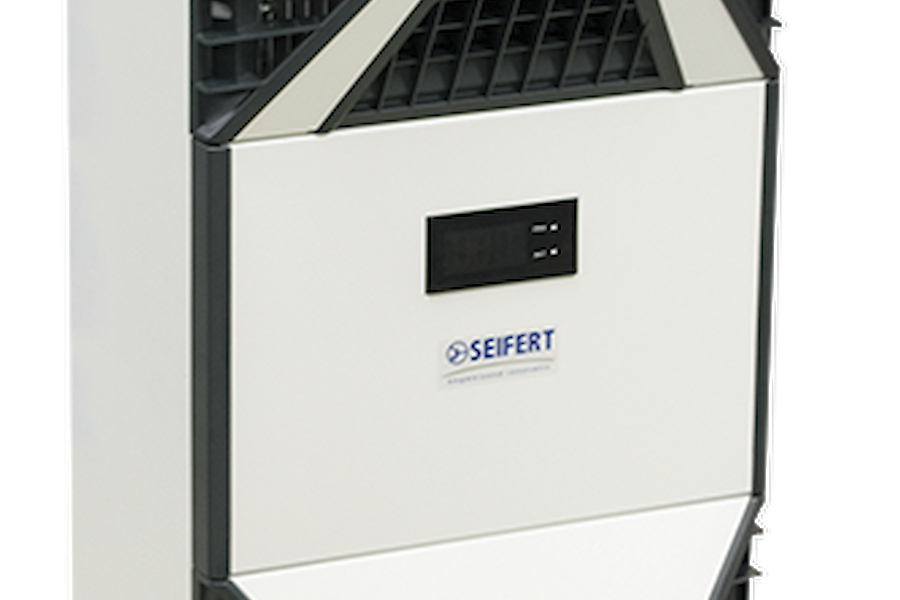

Features
- modern industrial design
- same enclosure cutout like 825 W and 1.5 kW cooling units
- protection class IP 55 / UL Type 12 (in stainless steel IP 56 / UL Type 3, 3R, 4, 4X)
- built-in electrical condensate evaporator
- wall mounted or recessed installation
Order Number 85129612 Brand Name SLIMLINE PRO Colour RAL 7035 Housing Material Mild steel, powder coated IP protection class to EN 60 529 IP 55 / Type 12 SK notes Voltage sticker PR596030690 next to electrical connection.
Packing bag without cable grommets and covering plate.
Customer will make a cable relief with the existing fixing point, but does not use the cover / grommetApprovals CE, cURus, cULus Cooling capacity L35L35 (EN14511-3) 1200 W @ 50 Hz
1260 W @ 60 HzCooling capacity L35L50 (EN14511-3) 900 W @ 50 Hz
1000 W @ 60 HzEER L35L35 1.71 Compressor type Rotary piston Refrigerant / GWP R 513A / 630 Refrigerant charge 230 g / 8.1 oz. High / low Pressure 30 / 6 bar
435 / 88 psiAir flow volume (system / unimpeded) Ambient air circuit: 300 / 550 m³/h
Cabinet air circuit: 350 / 550 m³/hOperating Temperature Range 10°C - 60°C UL temperature range 10°C - 60°C Mounting Wall mounted / recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
950 x 305 x 210 (55+155) mm Weight 33 kg Voltage / Frequency 380-415 V 50 Hz 3~
400-460 V 60 Hz 3~UL Voltage / Frequency 460 V / 60Hz 3~ Current L35L35 1.6 A @ 50 Hz
1.6 A @ 60 HzStarting current 8.2 A Max. current 2.0 A Nominal power L35L35 700 W @ 50 Hz
875 W @ 60 HzMax. power 1.2 kW Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 1.3 A Full load current fans 1.3 A Connection 4 pole connector for power
5 pole connector for signals
3 pole connector for RS 485 MODBUSDatasheet Generate PDF Instruction manual Generate PDF CAD files STEPSTEP with air flow duct2D - PDF2D - PDF with air flow duct Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video SLIMLINE PRO cleaning and maintenanceSLIMLINE PRO mounting Box dimensions 1042 x 405 x 242 mm Gross weight 36 Kg Taric code 84158200
