Features
- modern industrial design
- optimised size to performance ratio
- protection class IP 55 / UL Type 12 (in stainless steel IP 56 / UL Type 3, 3R, 4, 4X)
- built-in electrical condensate evaporator
- wall mounted or recessed installation
- cutout compatible with SLIMLINE HEX air / water heat exchanger RK 7555

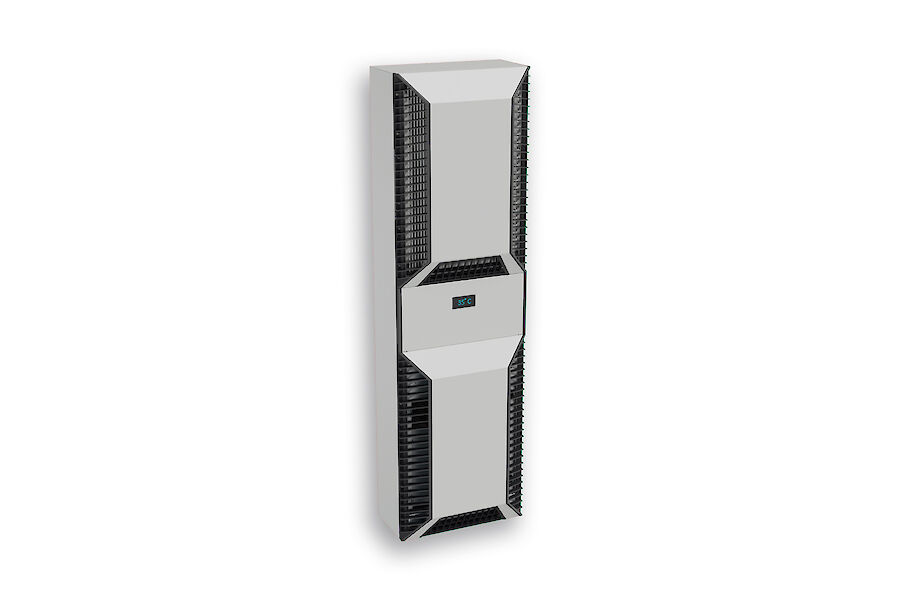

Order Number 854000001 Brand Name SLIMLINE PRO Colour RAL 7035 Housing Material Mild steel, powder coated Ingress Protection IP 55 / Type 12 Approvals CE, cURus, cULus Accessories Gasket Kit Type 4Cold Air Outlet Duct 8540/62Washable Aluminium Filter 8540/60Vibration Protection Kit 3 Cooling capacity L35L35 4.0 kW @ 50 Hz
4.2 kW @ 60 HzCooling capacity L35L50 3.5 kW @ 50 Hz
3.9 kW @ 60 HzEER L35L35 2.3 Compressor type Rotary Piston Refrigerant / GWP R134a / 1430 Refrigerant charge 570 g / 20.1 oz. High / low Pressure 32 / 6 bar
460 / 88 psiOperating Temperature Range 10°C - 60°C UL temperature range 10°C - 60°C Air flow volume (system / unimpeded) Ambient: 1000 / 1400 m³/h
Enclosure: 750 / 1200 m³/hMounting Wall mounted / recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1550 x 455 x 270 mm Weight 62 kg Voltage / Frequency 230 V 50/60 Hz UL Voltage / Frequency 230 V ~ 60 Hz Current L35L35 8.5 A @ 50 Hz
11 A @ 60 HzStarting current 50 A Max. current 14.8 A Nominal power L35L35 1.9 kW @ 50 Hz
2.5 kW @ 60 HzMax. power 3.4 kW Fuse 20 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 7.6 A Full load current fans 1.8 A Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files 2D - PDFSTEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video SLIMLINE PRO cleaning and maintenanceSLIMLINE PRO mounting Box dimensions 1642 x 555 x 299 mm Gross weight 70 Kg Taric code 84158200

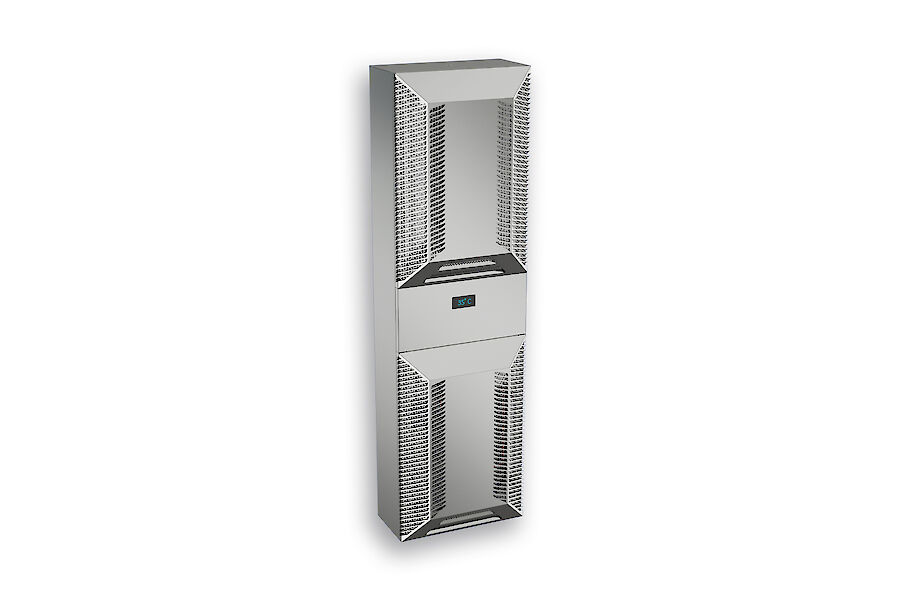

Order Number 854000S62 Brand Name SLIMLINE PRO Housing Material Stainless steel AISI 304 (V2A) Ingress Protection IP 56 / Type 12, 3, 3R, 4, 4X Approvals CE, cURus, cULus Accessories Cold Air Outlet Duct 8540/62Washable Aluminium Filter 8540/60Vibration Protection Kit 3 Cooling capacity L35L35 4.0 kW @ 50 Hz
4.2 kW @ 60 HzCooling capacity L35L50 3.5 kW @ 50 Hz
3.9 kW @ 60 HzEER L35L35 2.3 Compressor type Rotary Piston Refrigerant / GWP R134a / 1430 Refrigerant charge 570 g / 20.1 oz. High / low Pressure 32 / 6 bar
460 / 88 psiOperating Temperature Range 10°C - 60°C UL temperature range 10°C - 60°C Air flow volume (system / unimpeded) Ambient: 1000 / 1400 m³/h
Enclosure: 750 / 1200 m³/hMounting Wall mounted / recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1550 x 455 x 270 mm Weight 62 kg Voltage / Frequency 230 V 50/60 Hz UL Voltage / Frequency 230 V ~ 60 Hz Current L35L35 8.5 A @ 50 Hz
11 A @ 60 HzStarting current 50 A Max. current 14.8 A Nominal power L35L35 1.9 kW @ 50 Hz
2.5 kW @ 60 HzMax. power 3.4 kW Fuse 20 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 7.6 A Full load current fans 1.8 A Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files 2D - PDFSTEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video SLIMLINE PRO cleaning and maintenanceSLIMLINE PRO mounting Box dimensions 1642 x 555 x 299 mm Gross weight 72.5 Kg Taric code 84158200
Order Number 854020001 Brand Name SLIMLINE PRO Colour RAL 7035 Housing Material Mild steel, powder coated Ingress Protection IP 55 / Type 12 Approvals CE, cURus, cULus Accessories Gasket Kit Type 4Cold Air Outlet Duct 8540/62Washable Aluminium Filter 8540/60Vibration Protection Kit 3 Cooling capacity L35L35 4.0 kW @ 50 Hz
4.2 kW @ 60 HzCooling capacity L35L50 3.5 kW @ 50 Hz
3.9 kW @ 60 HzEER L35L35 2.31 Compressor type Rotary Piston Refrigerant / GWP R134a / 1430 Refrigerant charge 570 g / 20.1 oz. High / low Pressure 32 / 6 bar
460 / 88 psiOperating Temperature Range 10°C - 60°C UL temperature range 10°C - 60°C Air flow volume (system / unimpeded) Ambient: 1000 / 1400 m³/h
Enclosure: 750 / 1200 m³/hMounting Wall mounted / recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1550 x 455 x 270 mm Weight 62 kg Voltage / Frequency 380-415 V 50 Hz 3~
400-460 V 60 Hz 3~UL Voltage / Frequency 460 V / 60Hz 3~ Current L35L35 3.5 A @ 50 Hz
3.7 A @ 60 HzStarting current 15 A Max. current 4.8 A Nominal power L35L35 1.73 kW @ 50 Hz
2.27 kW @ 60 HzMax. power 3.2 kW Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 3 A Full load current fans 1.3 A Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files 2D - PDFSTEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video SLIMLINE PRO cleaning and maintenanceSLIMLINE PRO mounting Box dimensions 1642 x 555 x 299 mm Gross weight 70 Kg Taric code 84158200
Order Number 854020S62 Brand Name SLIMLINE PRO Housing Material Stainless steel AISI 304 (V2A) Ingress Protection IP 56 / Type 12, 3, 3R, 4, 4X Note pat. D815,265 Approvals CE, cURus, cULus Accessories Cold Air Outlet Duct 8540/62Vibration Protection Kit 3Washable Aluminium Filter 8540/60 Cooling capacity L35L35 4.0 kW @ 50 Hz
4.2 kW @ 60 HzCooling capacity L35L50 3.5 kW @ 50 Hz
3.9 kW @ 60 HzEER L35L35 2.31 Compressor type Rotary Piston Refrigerant / GWP R134a / 1430 Refrigerant charge 570 g / 20.1 oz. High / low Pressure 32 / 6 bar
460 / 88 psiOperating Temperature Range 10°C - 60°C UL temperature range 10°C - 60°C Air flow volume (system / unimpeded) Ambient: 1000 / 1400 m³/h
Enclosure: 750 / 1200 m³/hMounting External/Internal Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1550 x 455 x 270 mm Weight 62 kg Voltage / Frequency 380-415 V 50 Hz 3~
400-460 V 60 Hz 3~UL Voltage / Frequency 460 V / 60Hz 3~ Current L35L35 3.5 A @ 50 Hz
3.7 A @ 60 HzStarting current 15 A Max. current 4.8 A Nominal power L35L35 1.73 kW @ 50 Hz
2.27 kW @ 60 HzMax. power 3.2 kW Fuse 15 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 3 A Full load current fans 1.3 A Connection 4 pole terminal block for power
5 pole terminal block for signals
3 pole terminal block for RS 485Datasheet Generate PDF Instruction manual Generate PDF CAD files 2D - PDFSTEP Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video SLIMLINE PRO cleaning and maintenanceSLIMLINE PRO mounting Box dimensions 1642 x 555 x 299 mm Gross weight 72.5 Kg Taric code 84158200
