Features
- tool free installation
- one filter mat only
- standard enclosure cutouts (5 sizes)
- prevent the formation of hot pockets inside enclosures
Quick Links

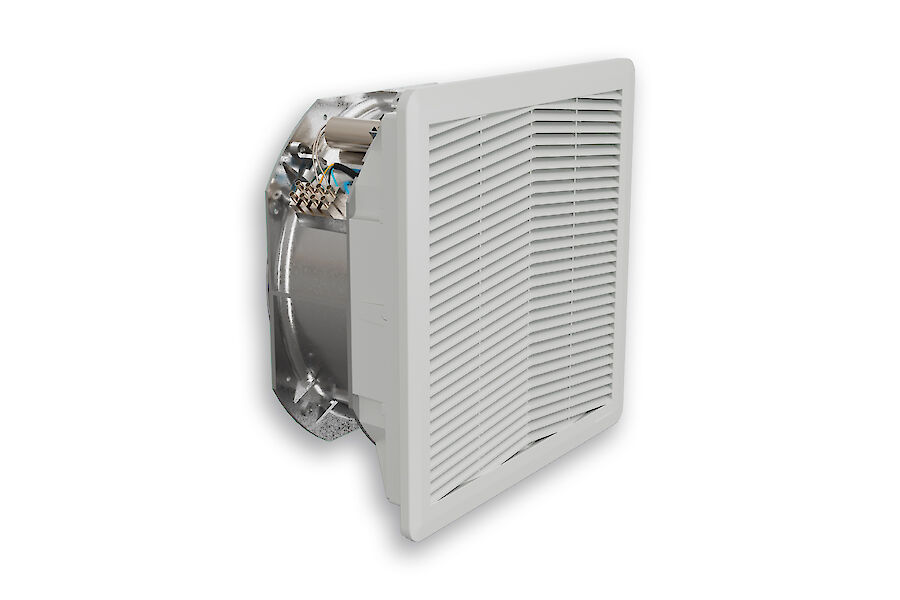

Order Number 4883A4000 Brand Name SOLIFLEX Colour RAL 7035 Housing Material ABS Plastic IP protection class to EN 60 529 IP 54, Type 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories Hose-proof protection hood FC 4000 400Hose-proof protection hood FC 4000 400 FDAAdjustable Thermostat NOFilter media Operating Temperature Range -10°C - +55°C Air flow unimpeded IP 54 820 m³/h Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
325 x 325 x 158.5 mm Cut out dimensions 291 x 291 (+1.5) mm Voltage / Frequency 230 V ~ 50/60 Hz Rated current 0.55 / 0.74 A Power consumption 125 / 166 W Wall thickness 1.5 - 2.5 mm Filter class G3 according to EN 779 Installation Elastic clips, optional screw mounting Noise level 66 dB(A) @ 50 Hz
69.2 dB(A) @ 60 HzDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declaration Certification (UK) UKCA declaration In RAL 9005 4883A4003 With TYPE 3R protection part no. 4883A4033 Taric code 84145915 GTIN (EAN) 5350604100794
Order Number 4883A4003 Brand Name SOLIFLEX Colour RAL 9005 Housing Material ABS Plastic IP protection class to EN 60 529 IP 54, Type 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories Hose-proof protection hood FC 4000 400Hose-proof protection hood FC 4000 400 FDAAdjustable Thermostat NOFilter media Operating Temperature Range -10°C - +55°C Air flow unimpeded IP 54 820 m³/h - 930 m³/h Static pressure 210 Pa @ 50 Hz
220 Pa @ 60 HzDimensions A x B x C (D+E) A = Height | B = Width | C = Depth
325 x 325 x 158.5 mm Weight 4.25 kg Cut out dimensions 291 x 291 (+1.5) mm Voltage / Frequency 230 V ~ 50/60 Hz Rated current 0.55 A / 0.74 A Power consumption 125 / 166 W Degree of separation 85% - DIN 24185 Wall thickness 1.5 - 2.5 mm Filter class G3 according to EN 779 Installation Elastic clips or by 4 self-threading screws Noise level 66 dB(A) @ 50 Hz
69.2 dB(A) @ 60 HzDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declaration Certification (UK) UKCA declaration Taric code 84145915 GTIN (EAN) 5350604100800
Order Number 4883A4103 Brand Name SOLIFLEX Colour RAL 9005 Housing Material ABS Plastic IP protection class to EN 60 529 IP 54, Type 12 Note Reverse air flow Approvals CE, cURus, cULus UL File Number E498756 Accessories Hose-proof protection hood FC 4000 400Hose-proof protection hood FC 4000 400 FDAFilter media Operating Temperature Range -10°C - +55°C Air flow unimpeded IP 54 820 m³/h - 930 m³/h Static pressure 210 Pa @ 50 Hz
220 Pa @ 60 HzDimensions A x B x C (D+E) A = Height | B = Width | C = Depth
325 x 325 x 158.5 mm Weight 4.25 kg Cut out dimensions 291 x 291 (+1.5) mm Voltage / Frequency 230 V ~ 50/60 Hz Rated current 0.55 A / 0.74 A Power consumption 125 / 166 W Degree of separation 85% - DIN 24185 Wall thickness 1.5 - 2.5 mm Filter class G3 according to EN 779 Installation Elastic clips or by 4 self-threading screws Noise level 66 dB(A) @ 50 Hz
69.2 dB(A) @ 60 HzDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declaration Certification (UK) UKCA declaration Taric code 84145915 GTIN (EAN) 5350604100800
Order Number 4883A3000 Brand Name SOLIFLEX Colour RAL 7035 Housing Material ABS Plastic IP protection class to EN 60 529 IP 54, Type 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories Hose-proof protection hood FC 4000 400Hose-proof protection hood FC 4000 400 FDAAdjustable Thermostat NOFilter media Operating Temperature Range -10°C - +55°C Air flow unimpeded IP 54 930 m³/h Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
325 x 325 x 158.5 mm Weight 4.25 kg Cut out dimensions 291 x 291 (+1.5) mm Voltage / Frequency 120 V ~ 60 Hz Rated current 1.5 A Power consumption 172 W Wall thickness 1.5 - 2.5 mm Filter class G3 according to EN 779 Installation Elastic clips, optional screw mounting Noise level 66 dB(A) @ 50 Hz
69.2 dB(A) @ 60 HzDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declaration Certification (UK) UKCA declaration With TYPE 3R protection part no. 4883A3033 Taric code 84145915 GTIN (EAN) 5350604100756
Order Number 4883A3003 Brand Name SOLIFLEX Colour RAL 9005 Housing Material ABS Plastic IP protection class to EN 60 529 IP 54, Type 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories Hose-proof protection hood FC 4000 400Hose-proof protection hood FC 4000 400 FDAAdjustable Thermostat NOFilter media Operating Temperature Range -10°C - +55°C Air flow unimpeded IP 54 820 m³/h - 930 m³/h Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
325 x 325 x 158.5 mm Weight 4.25 kg Cut out dimensions 291 x 291 (+1.5) mm Voltage / Frequency 120 V ~ 60 Hz Rated current 1.5 A Power consumption 172 W Degree of separation 85% - DIN 24185 Wall thickness 1.5 - 2.5 mm Filter class G3 according to EN 779 Installation Elastic clips or by 4 self-threading screws Noise level 72 dB(A) Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declaration Certification (UK) UKCA declaration Taric code 84145915 GTIN (EAN) 5350604100763
Order Number 4883A3103 Brand Name SOLIFLEX Colour RAL 9005 Housing Material ABS Plastic IP protection class to EN 60 529 IP 54, Type 12 Note Reverse air flow Approvals CE, cURus, cULus UL File Number E498756 Accessories Hose-proof protection hood FC 4000 400Hose-proof protection hood FC 4000 400 FDAAdjustable Thermostat NOFilter media Operating Temperature Range -10°C - +55°C Air flow unimpeded IP 54 930 m³/h Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
325 x 325 x 158.5 mm Weight 4.25 kg Cut out dimensions 291 x 291 (+1.5) mm Voltage / Frequency 120 V ~ 60 Hz Rated current 1.5 A Power consumption 172 W Degree of separation 85% - DIN 24185 Wall thickness 1.5 - 2.5 mm Filter class G3 according to EN 779 Installation Elastic clips or by 4 self-threading screws Noise level 72 dB(A) Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declaration Certification (UK) UKCA declaration Taric code 84145915 GTIN (EAN) 5350604100763
Order Number 4883A9000 Brand Name SOLIFLEX Colour RAL 7035 Housing Material ABS Plastic IP protection class to EN 60 529 IP 54, Type 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories Hose-proof protection hood FC 4000 400Hose-proof protection hood FC 4000 400 FDAAdjustable Thermostat NOFilter media Operating Temperature Range -10°C - +55°C Air flow unimpeded IP 54 820 m³/h Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
325 x 325 x 158.5 mm Weight 4.25 kg Cut out dimensions 291 x 291 (+1.5) mm Voltage / Frequency 400/460 V ~ 50/60 Hz Rated current 0.20 A / 0.24 A Power consumption 110 W / 145 W Wall thickness 1.5 - 2.5 mm Filter class G3 according to EN 779 Installation Elastic clips, optional screw mounting Noise level 66 dB(A) @ 50 Hz
69.2 dB(A) @ 60 HzDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declaration Certification (UK) UKCA declaration Taric code 84145915 GTIN (EAN) 5350604100831
Order Number 4883A9003 Brand Name SOLIFLEX Colour RAL 9005 Housing Material ABS Plastic IP protection class to EN 60 529 IP 54, Type 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories Hose-proof protection hood FC 4000 400Hose-proof protection hood FC 4000 400 FDAAdjustable Thermostat NOFilter media Operating Temperature Range -10°C - +70°C Air flow unimpeded IP 54 820 m³/h - 930 m³/h Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
325 x 325 x 158.5 mm Weight 4.25 kg Cut out dimensions 291 x 291 (+1.5) mm Voltage / Frequency 400/460 V ~ 50/60 Hz Rated current 0.20 A / 0.24 A Power consumption 110 / 145 W Wall thickness 1.5 - 2.5 mm Filter class G3 gemäß EN 779 Installation Elastic clips or by 4 self-threading screws Noise level 66 dB(A) @ 50 Hz
69.2 dB(A) @ 60 HzDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declaration Certification (UK) UKCA declaration Taric code 84145915 GTIN (EAN) 5350604100848
