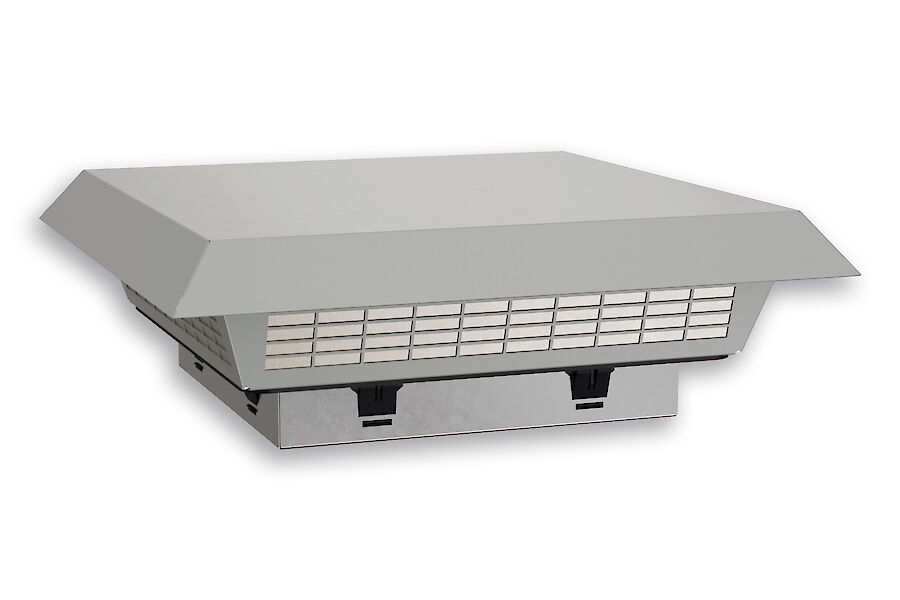

Features
- one cut out for various air flows
- easy installation, push-fit connector, ready with filter
- low mounting depth inside the enclosure
- ingress protection of IP 54, Type 12
- various clip options for add-on thermostats
- robust sheet metal structure, power coated
- fast & easy servicing outside enclosure
Quick Links
Operating Temperature Range -10°C - 55°C Air flow volume (system / unimpeded) 285 m³/hr Air flow unimpeded 275 m³/h Static pressure 63 Pa Mounting top mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
147 x 457 x 457 mm Weight 7 kg Cut out dimensions 291 x 291 mm Voltage / Frequency 230 V ~ 50/60 Hz Rated current 0.3 A Power consumption 57 W Degree of separation 85% - DIN 24185 Filter class G3 (Aluminium optional) Noise level 51 dB(A) Connection 4 pole connector Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC Konformitätserklärung Certification (UK) UKCA declaration Taric code 84145915 GTIN (EAN) 5350604100893
Operating Temperature Range -10°C - 55°C Air flow volume (system / unimpeded) 285 m³/hr Air flow unimpeded 275 m³/h Static pressure 63 Pa Mounting top mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
147 x 457 x 457 mm Weight 7 kg Cut out dimensions 291 x 291 mm Voltage / Frequency 120 V ~ 60 Hz Rated current 0.5 A Power consumption 57 W Degree of separation 85% - DIN 24185 Filter class G3 (Aluminium optional) Noise level 51 dB(A) Connection 4 pole connector Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC Konformitätserklärung Certification (UK) UKCA declaration Taric code 84145915 GTIN (EAN) 5350604100893
Operating Temperature Range -10°C - 55°C Air flow volume (system / unimpeded) 320 m³/h Air flow unimpeded 275 m³/h Static pressure 79 Pa Mounting top mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
147 x 457 x 457 mm Weight 5.8 kg Cut out dimensions 291 x 291 mm Voltage / Frequency 24 V DC Rated current 0.84 A Power consumption 20 W Degree of separation 85% - DIN 24185 Filter class G3 (Aluminium optional) Noise level 51 dB(A) Connection 4 pole connector (provided) Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC Konformitätserklärung Certification (UK) UKCA declaration Taric code 84145915 GTIN (EAN) 5350604100893
