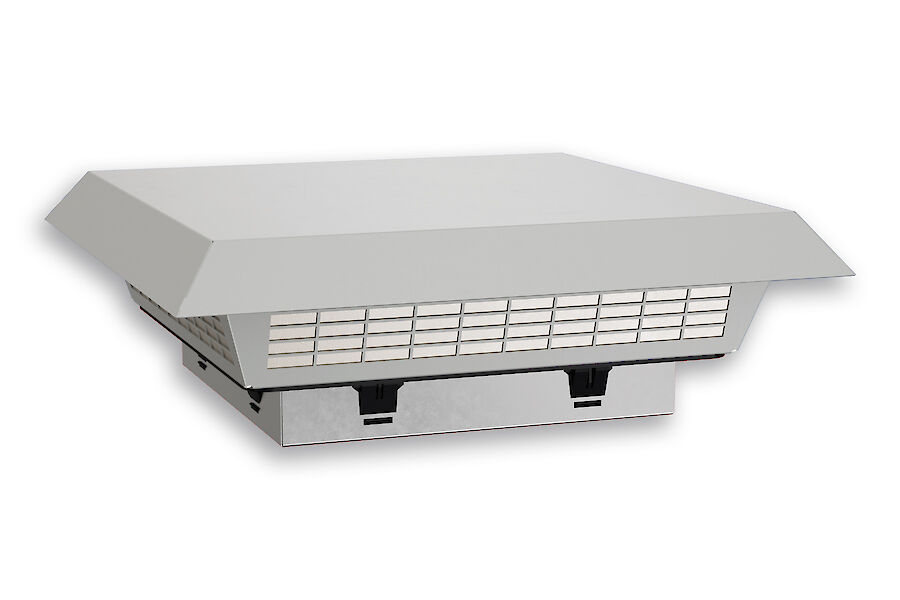

Features
- one cut out for various air flows
- easy installation, push-fit connector, ready with filter
- low mounting depth inside the enclosure
- ingress protection of IP 54, Type 12
- various clip options for add-on thermostats
- robust sheet metal structure, power coated
- fast & easy servicing outside enclosure
Quick Links
Operating Temperature Range -10°C - 55°C Air flow unimpeded IP 54 630 m³/h Static pressure 360 Pa Mounting top mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
147 x 457 x 457 mm Weight 6.4 kg Cut out dimensions 291 x 291 mm Voltage / Frequency 230 V ~ 50/60 Hz Rated current 0.38 / 0.49 A Power consumption 88 / 116 W Degree of separation 85% - DIN 24185 Filter class G3 (Aluminium optional) Noise level 70 dB(A) Connection 4 pole connector Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declaration Certification (UK) UKCA declaration Taric code 84145915 GTIN (EAN) 5350604100893
Operating Temperature Range -10°C - 55°C Air flow unimpeded IP 54 630 m³/h Static pressure 470 Pa Mounting top mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
147 x 457 x 457 mm Weight 6.4 kg Cut out dimensions 291 x 291 mm Voltage / Frequency 115 V ~ 60 Hz Rated current 0.9 A Power consumption 108 W Degree of separation 85% - DIN 24185 Filter class G3 (Aluminium optional) Noise level 70 dB(A) Connection 4 pole connector Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declaration Certification (UK) UKCA declaration Taric code 84145915
Operating Temperature Range -10°C - 55°C Air flow unimpeded IP 54 630 m³/h Static pressure 570 Pa Mounting top mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
147 x 457 x 457 mm Weight 7.8 kg Cut out dimensions 291 x 291 mm Voltage / Frequency 400/460 V - 50/60 Hz 3~ Rated current Max 0.22 A Power consumption Max 145 W Degree of separation 85% - DIN 24185 Filter class G3 (Aluminium optional) Noise level 70 dB(A) Connection 4 pole connector Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declaration Certification (UK) UKCA declaration Taric code 84145915 GTIN (EAN) 5350604100893
