Features
- wide voltage range for universal use
- with motion sensor or On /Off switch available
- 700 Lm light output
- daisy chain cables available to connect multiple lights
- magnets or clips for custom made mounting
Quick Links

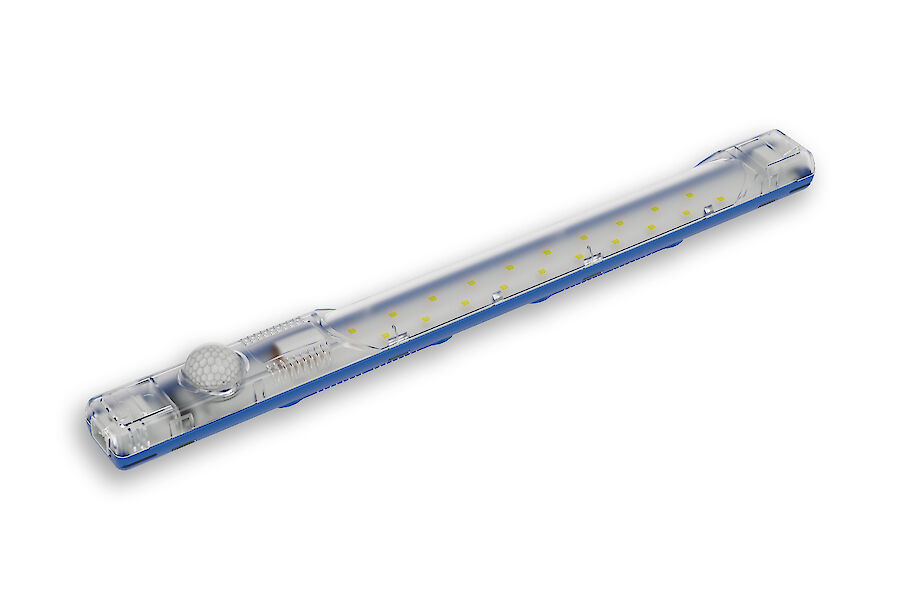

Order Number 400076 Brand Name STRIPLITE Colour Top cover frosted / body blue Housing Material PC plastic Ingress Protection IP 20 Included Built-in motion sensor, switch off time 5 min.
mounting accessoriesNote class II

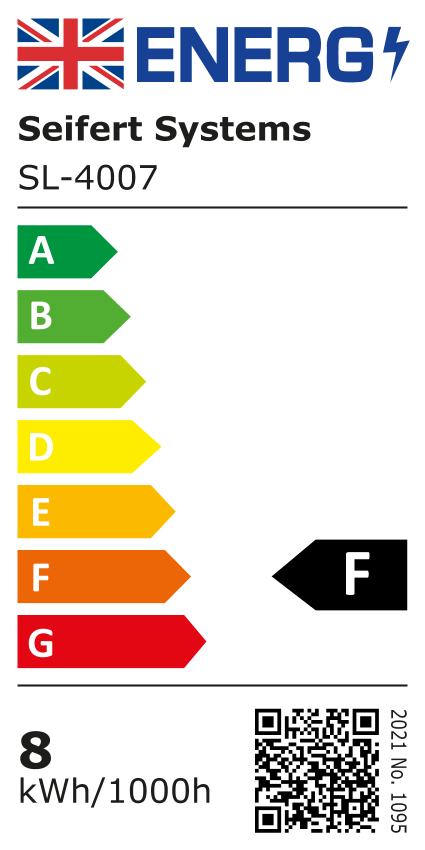

Energy class FApprovals CE Accessories Female ConnectorMale ConnectorPower Cable OrangePower Cable with Door Contact 3.5 mDaisy Chain Cable Orange 0.5 mDaisy Chain Cable Orange 1 mDIN rail clip Operating Temperature Range -30°C - 70°C
UL max temp: 60°CMounting Magnets / Clips Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
357.4 x 32 x 35.5 mm Weight 140 gr. Voltage / Frequency 120-230 V ~ 50/60 Hz Power consumption 8 Watt Lamp LED, 6500K Luminosity 700 lm Lifetime 60.000 hrs. @ 20°C Connection Connector system Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declarationEnergy class label Certification (UK) UKCA declarationEnergy class label UK Video SL 4000 LED cabinet lights Taric code 94054099 GTIN (EAN) 5350604000247

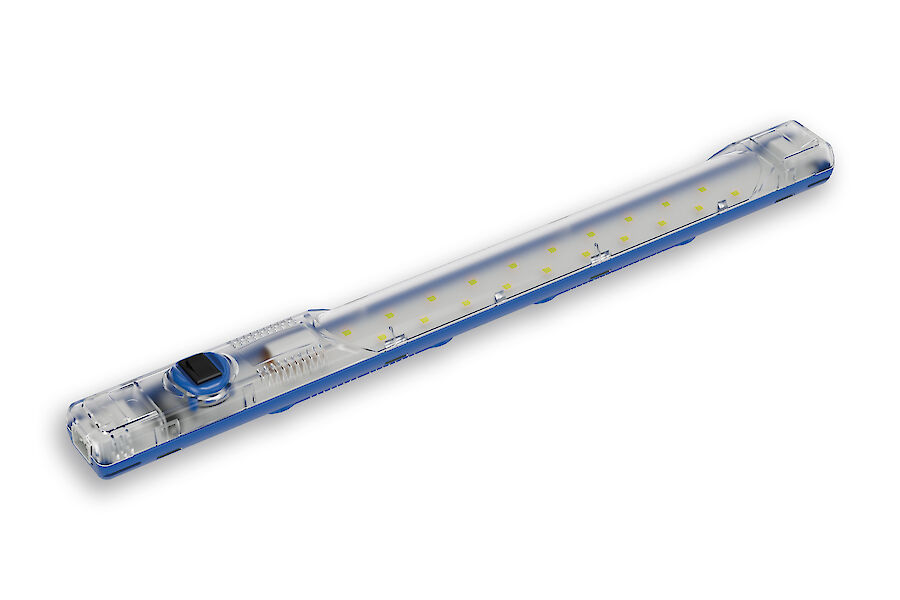

Order Number 400176 Brand Name stripLite Colour Top cover frosted / body blue Housing Material PC plastic Ingress Protection IP 20 Included Built-in On/Off switch, mounting accessories Note class II
Energy class FApprovals CE Accessories Female ConnectorMale ConnectorPower Cable OrangePower Cable with Door Contact 3.5 mDaisy Chain Cable Orange 0.5 mDaisy Chain Cable Orange 1 mDIN rail clip Operating Temperature Range -30°C - 70°C
UL max temp: 60°CMounting Magnets / Clips Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
357.4 x 32 x 35.5 mm Weight 140 gr. Voltage / Frequency 120-230 V ~ 50/60 Hz Power consumption 8 Watt Lamp LED, 6500K Luminosity 700 Lm Lifetime 50.000 hrs. @ 20°C Connection Connector system Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declarationEnergy class label Certification (UK) UKCA declarationEnergy class label UK Video SL 4000 LED cabinet lights Taric code 94054099 GTIN (EAN) 5350604000278
