Features
- high switching capacity
- adjustable temperature
- change-over contact
- easy DIN rail mounting

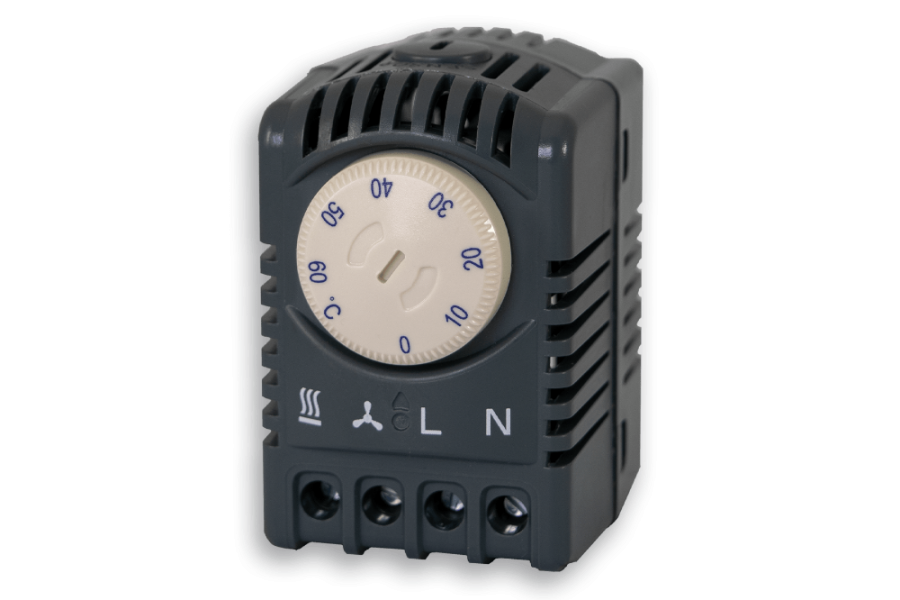

Order Number 301320 Brand Name SOLIFLEX Colour Grey (RAL 7011) Housing Material PC plastic Ingress Protection IP 20 Note Hyst. 4-7K/1K / Sw.Pt.tol ±3K Approvals CE, cURus UL File Number E358385 Operating Temperature Range 0°C - 60°C Setting range 0°C - 60°C Mounting DIN Rail 35 mm Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
60 x 39 x 53.3 mm Weight 64 g Voltage / Frequency AC:250V/10A(res)/2A(ind) DC:72V/30W
UL: max.250 VAC NC/NO: 10/5 A (res)Lifetime 100,000 hrs. Connection 4-pole terminal, clamping torque 0.5 Nm max.
solid wire - 2.5 mm² max., stranded wire - 1.5 mm² max.Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declaration Certification (UK) UKCA declaration Taric code 90321089 GTIN (EAN) 5350604010383

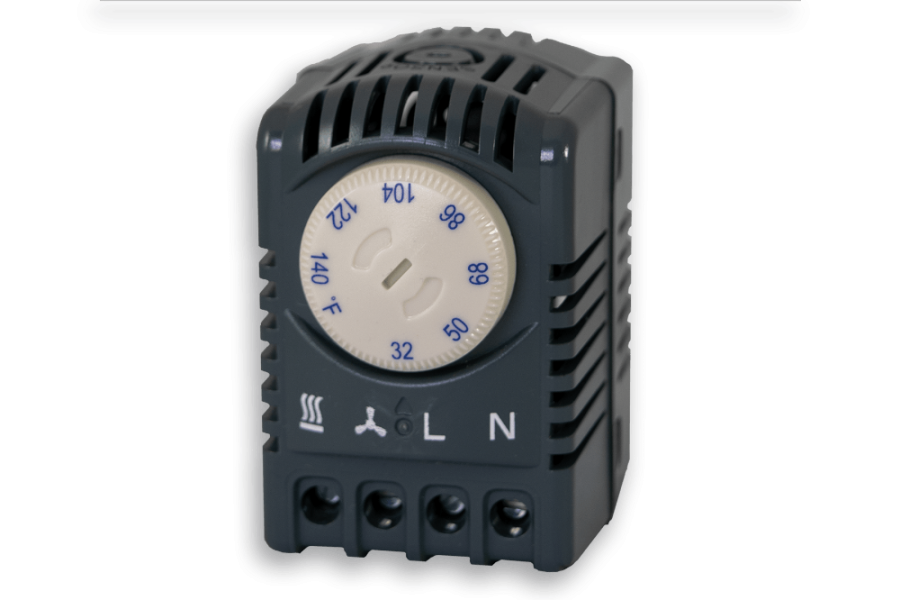

Order Number 301321 Brand Name SOLIFLEX Colour Grey (RAL 7011) Housing Material PC plastic Ingress Protection IP 20 Note Hyst. 4-7K/1K / Sw.Pt.tol ±3K Approvals CE, cURus UL File Number E358385 Operating Temperature Range 32°F - 140°F Setting range 32°F - 140°F Mounting DIN Rail 35 mm Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
60 x 39 x 53.3 mm Weight 64 g Voltage / Frequency AC:250V/10A(res)/2A(ind) DC:72V/30W
UL: max.250 VAC NC/NO: 10/5 A (res)Lifetime 100,000 hrs. Connection 4-pole terminal, clamping torque 0.5 Nm max.
solid wire - 2.5 mm² max., stranded wire - 1.5 mm² max.Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Certification EC declaration Certification (UK) UKCA declaration Taric code 90321089 GTIN (EAN) 5350604010413
