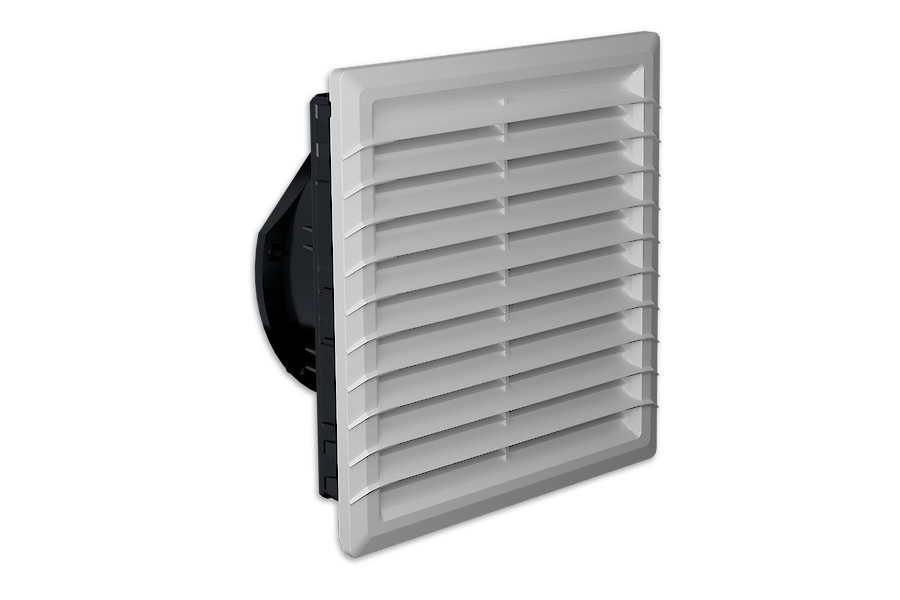

Features
- Außergewöhnliche Luftstromleistung mit hervorragendem Preis-Leistungsverhältnis
- Energieeffiziente Produktpalette

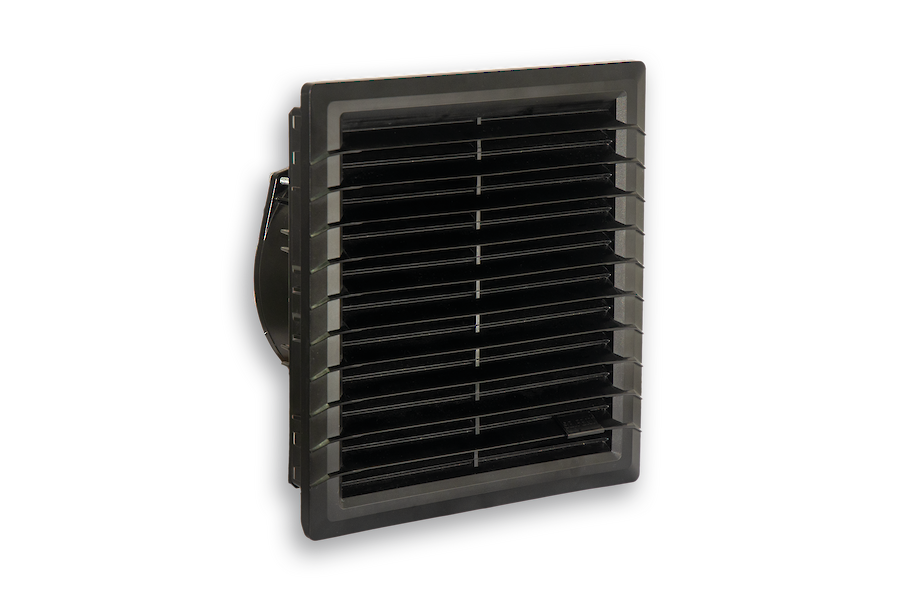

- Geeignet für Indoor und Outdoor (schwarze Modelle) Anwendungen
- Modelle mit Schutzart IP 55 erhältlich
- Werkzeuglose Montage, einfacher und schneller Filterwechsel
- Kombinieren Sie unsere FDA-zugelassenen, UL-zertifizierten Strahlwasserhauben mit SOLIVENT PRO-Filterlüftern für Reinraum- und Lebensmittelanwendungen
- Individuelle Farboptionen auf Anfrage
Für ergänzende Austrittsfilter bitte hier DRÜCKEN
Order Number 4720852201 Brand Name SOLIVENT PRO Color RAL 7035 Housing Material PC plastic / RAL 7035 Ingress protection to EN 60 529 IP 54 UL Typ (UL 50E) 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories FC 4000 200FC 4000 200 FDAThermostat 301050 Spare Parts Ersatzfilter #02 für SF 4720 Air flow unimpeded IP 54 84 CFM Air flow with exhaust filter IP 54 53.6 CFM Operating temperature range 14°F - 131 °F Storage temperature range -40°F - 158 °F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
204.5 x 204.5 x 98.7 (11.6+87.1) mm Weight 1.80 lbs. Cut out dimensions 6.97 x 6.97 inch Voltage / Frequency 100-240 VAC Rated current 0.18 / 0.18 A Power consumption 15 / 15 W Wall thickness 0.039 - 0.118 inch Noise level 51.5 dB(A) Fuse 1 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4720852203 54 12 / 3R RAL 9005 B 143 m³/hr 91 m³/hr 4720853201 55 12 / 3R RAL 7035 B 126 m³/hr 84 m³/hr 4720853203 55 12 / 3R RAL 9005 B 126 m³/hr 84 m³/hr 472085R2201 54 12 / 3R RAL 7035 S 472085R2203 54 12 / 3R RAL 9005 S 472085R3201 55 12 / 3R RAL 7035 S 472085R3203 55 12 / 3R RAL 9005 S 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
Air flow unimpeded IP 54 84 CFM Air flow with exhaust filter IP 54 53.6 CFM Operating temperature range -40°F - 131°F Storage temperature range -40°F - 158 °F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
204.5 x 204.5 x 98.7 (11.6+87.1) mm Weight 1.80 lbs. Cut out dimensions 6.97 x 6.97 inch Voltage / Frequency 100-240 VAC Rated current 0.18 / 0.18 A Power consumption 15 / 15 W Wall thickness 0.039 - 0.118 inch Noise level 51.5 dB(A) Fuse 1 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO
Order Number 4720022201 Brand Name SOLIVENT PRO Color RAL 7035 Housing Material PC plastic / RAL 7035 Ingress protection to EN 60 529 IP 54 UL Typ (UL 50E) 12 Note IP 55 with filter O3 (see manual) Approvals CE, cURus, cULus UL File Number E498756 Accessories FC 4000 200FC 4000 200 FDAThermostat 301050 Spare Parts Ersatzfilter #02 für SF 4720Ersatzfilter #03 für SF 4720 Air flow unimpeded IP 54 46.4 / 53.3 CFM Air flow with exhaust filter IP 54 29.4 / 34.1 CFM Operating temperature range 14°F - 131 °F Storage temperature range -40°F - 158 °F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
204.5 x 204.5 x 98.7 (11.6+87.1) mm Weight 2.43 lbs. Cut out dimensions 6.97 x 6.97 inch Voltage / Frequency 230 V ~ 50/60 Hz Rated current 0.17 / 0.17 A Power consumption 20 / 17 W Wall thickness 0.039 - 0.118 inch Noise level 46 dB(A) Fuse 1 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4720022203 54 12 / 3R RAL 9005 B 79 / 91 m³/hr 50 / 58 m³/hr 4720023201 55 12 / 3R RAL 7035 B 69 / 84 m³/hr 45 / 53 m³/hr 4720023203 55 12 / 3R RAL 9005 B 69 / 84 m³/hr 45 / 53 m³/hr 472002R2201 54 12 / 3R RAL 7035 S 472002R2203 54 12 / 3R RAL 9005 S 472002R3201 55 12 / 3R RAL 7035 S 472002R3203 55 12 / 3R RAL 9005 S 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
Air flow unimpeded IP 54 46.4 / 53.3 CFM Air flow with exhaust filter IP 54 29.4 / 34.1 CFM Operating temperature range -40°F - 131°F Storage temperature range -40°F - 158 °F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
204.5 x 204.5 x 98.7 (11.6+87.1) mm Weight 2.43 lbs. Cut out dimensions 6.97 x 6.97 inch Voltage / Frequency 230 V ~ 50/60 Hz Rated current 0.17 / 0.17 A Power consumption 20 / 17 W Wall thickness 0.039 - 0.118 inch Noise level 46 dB(A) Fuse 1 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO
Order Number 4720122201 Brand Name SOLIVENT PRO Color RAL 7035 Housing Material PC plastic / RAL 7035 Ingress protection to EN 60 529 IP 54 UL Typ (UL 50E) 12 Note IP 55 with filter O3 (see manual) Approvals CE, cURus, cULus UL File Number E498756 Accessories FC 4000 200FC 4000 200 FDAThermostat 301050 Spare Parts Ersatzfilter #02 für SF 4720Ersatzfilter #03 für SF 4720 Air flow unimpeded IP 54 79 m³/hr Operating temperature range 14°F - 131 °F Storage temperature range -40°F - 158 °F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
204.5 x 204.5 x 98.7 (11.6+87.1) mm Weight 2.43 lbs. Cut out dimensions 6.97 x 6.97 inch Voltage / Frequency 120 V ~ 50/60 Hz Rated current 0.26 / 0.26 A Power consumption 21 / 18 W Wall thickness 0.039 - 0.118 inch Noise level 45 dB(A) Fuse 1 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4720122203 54 12 / 3R RAL 9005 B 79 / 91 m³/hr 50 / 58 m³/hr 4720123201 55 12 / 3R RAL 7035 B 69 / 84 m³/hr 45 / 53 m³/hr 4720123203 55 12 / 3R RAL 9005 B 69 / 84 m³/hr 45 / 53 m³/hr 472012R2201 54 12 / 3R RAL 7035 S 472012R2203 54 12 / 3R RAL 9005 S 472012R3201 55 12 / 3R RAL 7035 S 472012R3203 55 12 / 3R RAL 9005 S 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
Air flow unimpeded IP 54 79 m³/hr Operating temperature range -40°F - 131°F Storage temperature range -40°F - 158 °F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
204.5 x 204.5 x 98.7 (11.6+87.1) mm Weight 2.43 lbs. Cut out dimensions 6.97 x 6.97 inch Voltage / Frequency 120 V ~ 50/60 Hz Rated current 0.26 / 0.26 A Power consumption 21 / 18 W Wall thickness 0.039 - 0.118 inch Noise level 45 dB(A) Fuse 1 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO
Order Number 4720322201 Brand Name SOLIVENT PRO Color RAL 7035 Housing Material PC plastic / RAL 7035 Ingress protection to EN 60 529 IP 54 UL Typ (UL 50E) 12 Note IP 55 with filter O3 (see manual) Approvals CE, cURus, cULus UL File Number E498756 Accessories FC 4000 200FC 4000 200 FDA Spare Parts Ersatzfilter #02 für SF 4720Ersatzfilter #03 für SF 4720 Air flow unimpeded IP 54 59.4 CFM Air flow with exhaust filter IP 54 37 CFM Operating temperature range 14°F - 131 °F Storage temperature range -40°F - 158 °F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
204.5 x 204.5 x 98.7 (11.6+87.1) mm Cut out dimensions 6.97 x 6.97 inch Voltage / Frequency 24 V DC Rated current 0.21 A Power consumption 5 W Wall thickness 0.039 - 0.118 inch Noise level 44.5 dB(A) Fuse 1 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4720322203 54 12 / 3R RAL 9005 B 101 m³/hr 63 m³/hr 4720323201 55 12 / 3R RAL 7035 B 92 m³/hr 57 m³/hr 4720323203 55 12 / 3R RAL 9005 B 92 m³/hr 57 m³/hr 472032R2201 54 12 / 3R RAL 7035 S 472032R2203 54 12 / 3R RAL 9005 S 472032R3201 55 12 / 3R RAL 7035 S 472032R3203 55 12 / 3R RAL 9005 S 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
Air flow unimpeded IP 54 59.4 CFM Air flow with exhaust filter IP 54 37 CFM Operating temperature range -40°F - 131°F Storage temperature range -40°F - 158 °F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
204.5 x 204.5 x 98.7 (11.6+87.1) mm Cut out dimensions 6.97 x 6.97 inch Voltage / Frequency 24 V DC Rated current 0.21 A Power consumption 5 W Wall thickness 0.039 - 0.118 inch Noise level 44.5 dB(A) Fuse 1 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO
Order Number 4720352201 Brand Name SOLIVENT PRO Color RAL 7035 Housing Material PC plastic / RAL 7035 Ingress protection to EN 60 529 IP 54 UL Typ (UL 50E) 12 Note IP 55 with filter O3 (see manual) Approvals CE, cURus, cULus UL File Number E498756 Accessories FC 4000 200FC 4000 200 FDA Spare Parts Ersatzfilter #02 für SF 4720Ersatzfilter #03 für SF 4720 Air flow unimpeded IP 54 76.5 CFM Air flow with exhaust filter IP 54 50 CFM Operating temperature range 14°F - 131 °F Storage temperature range -40°F - 158 °F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
204.5 x 204.5 x 98.7 (11.6+87.1) mm Weight 1.80 lbs. Cut out dimensions 6.97 x 6.97 inch Voltage / Frequency 24 V DC Rated current 0.5 A Power consumption 12 W Wall thickness 0.039 - 0.118 inch Noise level 50 dB(A) Fuse 1 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO
Air flow unimpeded IP 54 76.5 CFM Air flow with exhaust filter IP 54 50 CFM Operating temperature range -40°F - 131°F Storage temperature range -40°F - 158 °F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
204.5 x 204.5 x 98.7 (11.6+87.1) mm Weight 1.80 lbs. Cut out dimensions 6.97 x 6.97 inch Voltage / Frequency 24 V DC Rated current 0.5 A Power consumption 12 W Wall thickness 0.039 - 0.118 inch Noise level 50 dB(A) Fuse 1 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO
