Features
- Unterschiedliche Luftstromleistungen (M=Medium, H= Hocher Luftstrom)
- Energieeffiziente Produktpalette

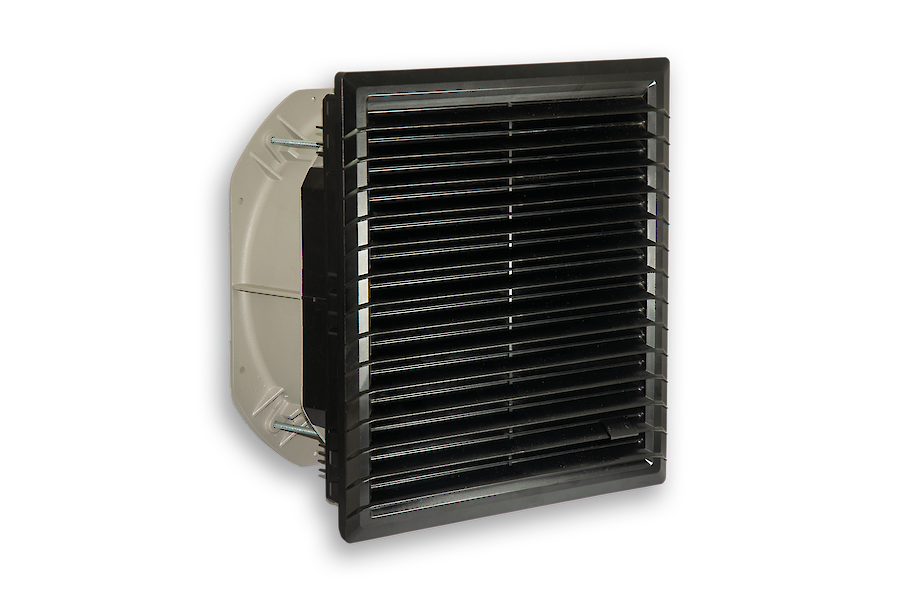

- Geeignet für Indoor und Outdoor (schwarze Modelle) Anwendungen
- Modelle mit Schutzart IP 55 erhältlich
- Werkzeuglose Montage, einfacher und schneller Filterwechsel
- Kombinieren Sie unsere FDA-zugelassenen, UL-zertifizierten Strahlwasserhauben mit SOLIVENT PRO-Filterlüftern für Reinraum- und Lebensmittelanwendungen
- Individuelle Farboptionen auf Anfrage
Für ergänzende Austrittsfilter bitte hier DRÜCKEN

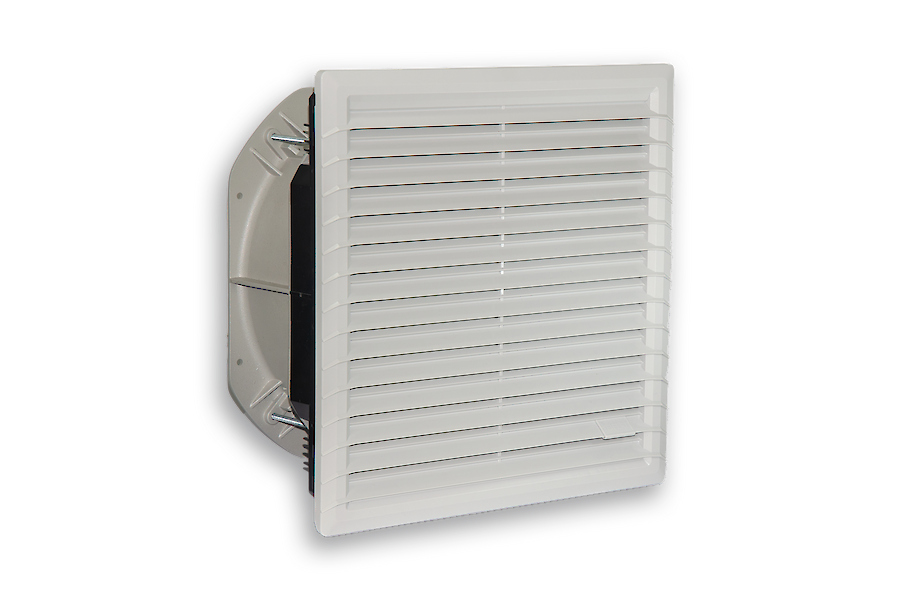

Order Number 4732082501 Brand Name SOLIVENT PRO Color RAL 7035 Housing Material PC plastic / RAL 7035 Ingress protection to EN 60 529 IP 54 UL Typ (UL 50E) 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories FC 4000 400FC 4000 400 FDAThermostat 301050 Spare Parts Ersatzfilter #02 für SF 4732 Air flow unimpeded IP 54 477 / 501 CFM Air flow with exhaust filter IP 54 315 / 335 CFM Operating temperature range 14°F- 131°F Storage temperature range -40°F- 158°F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
325.5 x 325.5 x 165.2 (11.6+153.6) mm Weight 10.58 lbs. Cut out dimensions 11.5 x 11.5 inch Voltage / Frequency 230 V ~ 50/60 Hz Rated current 0.61 / 0.82 A Power consumption 136 / 185 W Wall thickness 0.039 - 0.118 inch Noise level 71 dB(A) Fuse 1.5 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4732082503 54 12 / 3R RAL 9005 B 810 / 851 m³/hr 535 / 570 m³/hr 473208R2501 54 12 / 3R RAL 7035 S 652 / 717 m³/hr 473208R2503 54 12 / 3R RAL 9005 S 652 / 717 m³/hr 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
Air flow unimpeded IP 54 477 / 501 CFM Air flow with exhaust filter IP 54 315 / 335 CFM Operating temperature range -40°F - 131°F Storage temperature range -40°F- 158°F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
325.5 x 325.5 x 165.2 (11.6+153.6) mm Weight 10.58 lbs. Cut out dimensions 11.5 x 11.5 inch Voltage / Frequency 230 V ~ 50/60 Hz Rated current 0.61 / 0.82 A Power consumption 136 / 185 W Wall thickness 0.039 - 0.118 inch Noise level 71 dB(A) Fuse 1.5 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO No Order Information
Order Number 4732052501 Brand Name SOLIVENT PRO Color RAL 7035 Housing Material PC plastic / RAL 7035 Ingress protection to EN 60 529 IP 54 UL Typ (UL 50E) 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories FC 4000 400FC 4000 400 FDAThermostat 301050 Spare Parts Ersatzfilter #02 für SF 4732 Air flow unimpeded IP 54 409.4 / 421.8 CFM Air flow with exhaust filter IP 54 265 / 265 CFM Operating temperature range 14°F- 131°F Storage temperature range -40°F- 158°F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
325.5 x 325.5 x 165.2 (11.6+153.6) mm Weight 10.58 lbs. Cut out dimensions 11.5 x 11.5 inch Voltage / Frequency 230 V ~ 50/60 Hz Rated current 0.35 / 0.50 A Power consumption 80 / 110 W Wall thickness 0.039 - 0.118 inch Noise level 61 dB(A) Fuse 1 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4732052503 54 12 / 3R RAL 9005 B 696 / 717 m³/hr 450 / 450 m³/hr 473205R2501 54 12 / 3R RAL 7035 S 549 / 542 m³/hr 473205R2503 54 12 / 3R RAL 9005 S 549 / 542 m³/hr 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
Air flow unimpeded IP 54 409.4 / 421.8 CFM Air flow with exhaust filter IP 54 265 / 265 CFM Operating temperature range -40°F - 131°F Storage temperature range -40°F- 158°F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
325.5 x 325.5 x 165.2 (11.6+153.6) mm Weight 10.58 lbs. Cut out dimensions 11.5 x 11.5 inch Voltage / Frequency 230 V ~ 50/60 Hz Rated current 0.35 / 0.50 A Power consumption 80 / 110 W Wall thickness 0.039 - 0.118 inch Noise level 61 dB(A) Fuse 1 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO No Order Information
Order Number 4732152501 Brand Name SOLIVENT PRO Color RAL 7035 Housing Material PC plastic / RAL 7035 Ingress protection to EN 60 529 IP 54 UL Typ (UL 50E) 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories FC 4000 400FC 4000 400 FDAThermostat 301050 Spare Parts Ersatzfilter #02 für SF 4732 Air flow unimpeded IP 54 410 / 422 CFM Air flow with exhaust filter IP 54 265 / 265 CFM Operating temperature range 14°F- 131°F Storage temperature range -40°F- 158°F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
325.5 x 325.5 x 165.2 (11.6+153.6) mm Weight 10.58 lbs. Cut out dimensions 11.5 x 11.5 inch Voltage / Frequency 120 V ~ 50/60 Hz Rated current 0.65 / 0.88 A Power consumption 72 / 100 W Wall thickness 0.039 - 0.118 inch Noise level 61 dB(A) Fuse 1 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4732152503 54 12 / 3R RAL 9005 B 696 / 717 m³/hr 450 / 450 m³/hr 473215R2501 54 12 / 3R RAL 7035 S 549 / 542 m³/hr 473215R2503 54 12 / 3R RAL 9005 S 549 / 542 m³/hr 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
Air flow unimpeded IP 54 410 / 422 CFM Air flow with exhaust filter IP 54 265 / 265 CFM Operating temperature range -40°F - 131°F Storage temperature range -40°F- 158°F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
325.5 x 325.5 x 165.2 (11.6+153.6) mm Weight 10.58 lbs. Cut out dimensions 11.5 x 11.5 inch Voltage / Frequency 120 V ~ 50/60 Hz Rated current 0.65 / 0.88 A Power consumption 72 / 100 W Wall thickness 0.039 - 0.118 inch Noise level 61 dB(A) Fuse 1 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO No Order Information
Order Number 4732182501 Brand Name SOLIVENT PRO Color RAL 7035 Housing Material PC plastic / RAL 7035 Ingress protection to EN 60 529 IP 54 UL Typ (UL 50E) 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories FC 4000 400FC 4000 400 FDAThermostat 301050 Spare Parts Ersatzfilter #02 für SF 4732 Air flow unimpeded IP 54 477 / 501 CFM Air flow with exhaust filter IP 54 315 / 335 CFM Operating temperature range 14°F- 131°F Storage temperature range -40°F- 158°F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
325.5 x 325.5 x 165.2 (11.6+153.6) mm Cut out dimensions 11.5 x 11.5 inch Voltage / Frequency 120 V ~ 50/60 Hz Rated current 1.18 / 1.67 A Power consumption 135 / 190 W Wall thickness 0.039 - 0.118 inch Noise level 71 dB(A) Fuse 1.5 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4732182503 54 12 / 3R RAL 9005 B 810 / 851 m³/hr 535 / 570 m³/hr 473218R2501 54 12 / 3R RAL 7035 S 652 / 717 m³/hr 473218R2503 54 12 / 3R RAL 9005 S 652 / 717 m³/hr 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
Air flow unimpeded IP 54 477 / 501 CFM Air flow with exhaust filter IP 54 315 / 335 CFM Operating temperature range -40°F - 131°F Storage temperature range -40°F- 158°F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
325.5 x 325.5 x 165.2 (11.6+153.6) mm Cut out dimensions 11.5 x 11.5 inch Voltage / Frequency 120 V ~ 50/60 Hz Rated current 1.18 / 1.67 A Power consumption 135 / 190 W Wall thickness 0.039 - 0.118 inch Noise level 71 dB(A) Fuse 1.5 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO No Order Information
Order Number 4732282501 Brand Name SOLIVENT PRO Color RAL 7035 Housing Material PC plastic / RAL 7035 Ingress protection to EN 60 529 IP 54 UL Typ (UL 50E) 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories FC 4000 400FC 4000 400 FDA Spare Parts Ersatzfilter #02 für SF 4732 Air flow unimpeded IP 54 331 / 379 CFM Air flow with exhaust filter IP 54 232 / 268 CFM Operating temperature range 14°F- 131°F Storage temperature range -40°F- 158°F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
325.5 x 325.5 x 165.2 (11.6+153.6) mm Weight 10.58 lbs. Cut out dimensions 11.5 x 11.5 inch Voltage / Frequency 400V-50 Hz 3~ / 460V-60 Hz 3~ Rated current 0.20 / 0.23 A Power consumption 110 / 145 W Wall thickness 0.039 - 0.118 inch Noise level 67 dB(A) Fuse 3 x 1 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4732282503 54 12 / 3R RAL 9005 B 563 / 643 m³/hr 395 / 455 m³/hr 473218R2501 54 12 / 3R RAL 7035 S 592 / 693 m³/hr 473218R2503 54 12 / 3R RAL 9005 S 592 / 693 m³/hr 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
Air flow unimpeded IP 54 331 / 379 CFM Air flow with exhaust filter IP 54 232 / 268 CFM Operating temperature range -40°F - 131°F Storage temperature range -40°F- 158°F Mounting Wall mounted Dimension H x W x D A = Height | B = Width | C = Depth
325.5 x 325.5 x 165.2 (11.6+153.6) mm Weight 10.58 lbs. Cut out dimensions 11.5 x 11.5 inch Voltage / Frequency 400V-50 Hz 3~ / 460V-60 Hz 3~ Rated current 0.20 / 0.23 A Power consumption 110 / 145 W Wall thickness 0.039 - 0.118 inch Noise level 67 dB(A) Fuse 3 x 1 A (T) Connection Federklemme Datasheet Generate PDF Instructions User manual SOLIVENT PRO No Order Information
